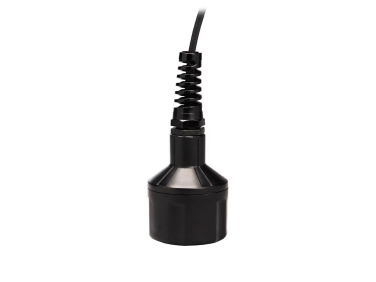

DO6400 - Dissolved Oxygen Sensor with Digital Communication

  • NG # 04232-HW-SEN-011

  • MF # DO6400-1

The Sensorex DO6400 is a galvanic dissolved oxygen sensor designed for industrial and environmental monitoring applications. It provides fast response and accurate oxygen measurements in water, with flexible output options including millivolt, 4–20 mA, and digital MODBUS/RS485 communication for smooth integration with PLCs and control systems. Requires simple single-point air calibration and supports long-term deployment with a large electrolyte reservoir and low maintenance design.

Manufactured By :
Sensorex
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The DO6400 Dissolved Oxygen Sensor from Sensorex is engineered for reliable measurement of dissolved oxygen in a variety of water applications such as aquaculture, wastewater treatment, and environmental monitoring. This galvanic sensor uses proven technology to deliver accurate readings with minimal latency, and its large electrolyte reservoir reduces maintenance frequency. Calibration is straightforward with a single-point air method.

Users can choose between multiple communication outputs to suit different control and data acquisition needs, including traditional analog signals (millivolt or 4–20 mA) or digital data via MODBUS/RS485. The sensor operates within a broad temperature range and supports multiple saturation ranges. Its robust construction with chemically resistant materials and extended cable make it suitable for long-term deployment in demanding environments. Sensorex offers a one year limited warranty on this sensor.

Specification

Sensor Type

  • Galvanic dissolved oxygen sensor technology for reliable measurement.

Measurement Output Options

  • Millivolt output.
  • 4–20 mA analog output.
  • MODBUS/RS485 digital communication.

Input Voltage

  • 12 V DC for MODBUS only.
  • 24 V DC for 4–20 mA and MODBUS.

Measurement Ranges

  • Options from 0 – 100%, 0 – 150%, 0 – 200%, and 0 – 300% dissolved oxygen saturation.

Operating Conditions

  • Temperature range: 0 – 50 °C.

Construction & Materials

  • Body: Noryl, PTFE, Viton®.
  • Cable length: 10 ft (3 m) with tinned leads.

Power Requirements

  • 12 – 36 V DC.

Connector

  • Tinned leads.

Warranty

  • One year limited warranty.

Dimensions & Weight

  • Approx. 10.75 × 4.4 × 3.4 in.
  • Weight approx. 1.68 lbs.
