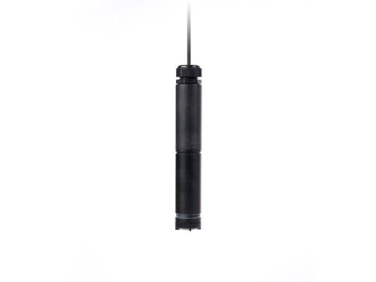

FCL - Free Chlorine Sensor, Amperometric

  • NG # 04226-HW-SEN-005

  • MF # FCL502

The FCL Amperometric Free Chlorine Sensor provides reliable, reagent-free measurement of free chlorine in water. Featuring real-time monitoring, automatic temperature compensation, and a direct 4–20 mA output, it ensures accurate and efficient chlorine control in a wide range of water treatment applications.

Manufactured By :
Sensorex
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The FCL Amperometric Free Chlorine Sensor provides reliable, reagent-free measurement of free chlorine in water. Featuring real-time monitoring, automatic temperature compensation, and a direct 4–20 mA output, it ensures accurate and efficient chlorine control in a wide range of water treatment applications.

Specification

·  Measurement Technology: Amperometric sensing method for free chlorine detection

·  Measurement Parameter: Free chlorine (ppm)

·  Measurement Ranges: 0–2 ppm, 0–5 ppm, 0–10 ppm

·  Output Signal: Direct 4–20 mA analog output

·  Operation Mode: Continuous real-time monitoring

·  Reagents Requirement: No reagents required

·  Temperature Compensation: Integrated automatic temperature compensation

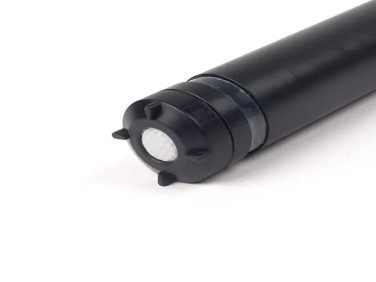

·  Sensor Design: Membrane-covered amperometric sensor with electrolyte

·  Maintenance: Replaceable membrane cap and fill solution

·  Sensor Lifetime: Extended life with large electrolyte reservoir

·  Compatibility: Works with PLC, SCADA, and standard 4–20 mA systems

·  Applications:

  • Municipal water treatment
  • Wastewater treatment
  • Industrial process water
  • Food and beverage sanitation

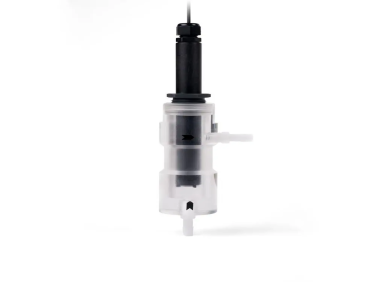

·  Installation Support: Compatible with flow cell and flow regulator accessories

·  Weight: Approx. 0.84 lbs

·  Dimensions: 10 × 4 × 3 inches

·  Warranty: One-year limited warranty
