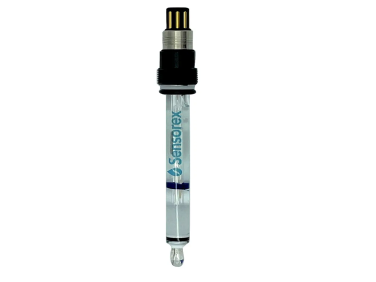

GT/GG/GC-series Glass Body High Temperature Process pH and ORP Electrodes

  • NG # 04241-HW-SEN-020

The GT/GG/GC Series Glass Body High Temperature Process pH and ORP Electrodes are industrial‑grade sensors engineered for reliable pH and oxidation‑reduction potential measurements in demanding environments. These electrodes feature robust glass construction with multiple junction options and connector configurations to suit a wide range of chemical and temperature conditions. Designed for high‑temperature process applications, they provide stable and accurate readings across the full pH scale, with options for temperature compensation and long‑term performance stability.

Manufactured By :
Sensorex
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The GT/GG/GC Series from Sensorex provides high‑performance pH and ORP electrodes suitable for challenging industrial and process applications, including high temperature wastewater monitoring. The series leverages inert glass bodies and advanced reference designs (including double salt ring reference technology) to deliver consistent measurement stability and chemical resistance. Users can select from PTFE, open pore, or ceramic junction types based on the application’s particulate and chemical load. Multiple connector options (VarioPin or S8), temperature compensation choices, and selectable lengths make these electrodes versatile for integration with a range of instrumentation and installations. These electrodes are designed for accuracy, durability, and minimal maintenance, offering dependable operation over a broad pH and temperature range.

Specification

General Features

  • Glass-body pH and ORP electrodes for industrial and process applications
  • Designed for high temperature samples, including industrial wastewater
  • Compatible with wide pH range 0‑14 for accurate measurement across scales
  • Extended shelf life and ready‑to‑use condition with one year warranty

Construction and Materials

  • Body material: durable inert glass for chemical resistance
  • Glass shape: bulb‑type design
  • O‑Ring material: Viton® for sealing integrity
  • Sealed Ag/AgCl reference solution with KCl/AgCl gel and salt rings

Junction Options

  • PTFE junction for clogging resistance (GT Series)
  • Open pore junction for high particle load tolerance (GG Series)
  • Ceramic junction with pressurized diaphragm and ion trap design (GC Series)

Technical Specifications

  • Diameter: 12 mm
  • Length options: 120 mm or 225 mm
  • Operating temperature range: −5 to 130 °C (high‑temp models)
  • Maximum pressure: up to 6 bar (87 psia)
  • Impedance: <1000 MÙ

Connector and Configuration

  • Connector types available: VarioPin or S8
  • Temperature compensation options: None, Pt100, or Pt1000
  • Single‑junction or double‑junction choices depending on application needs
