NG # 09440014-HW-SENS-014

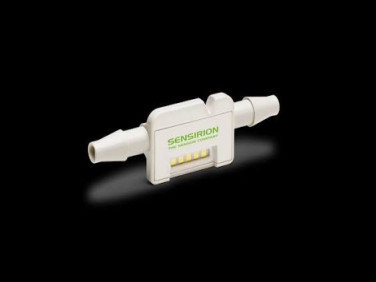

LD20-2600B is a single-use liquid flow sensor designed for precise, bidirectional measurement of low liquid flow rates up to 16.6 ml/min. Featuring CMOSens® technology, integrated temperature compensation, and digital I²C and RS485 interfaces, it provides reliable flow monitoring and rapid detection of air bubbles, occlusions, and free-flow conditions. It is suitable for medical, life-science, and drug-delivery applications.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe LD20-2600B offers accurate, repeatable liquid flow measurement with a maximum operating pressure of 3 bar. Calibrated for water, it provides 5% accuracy and 0.5% repeatability. The sensor operates on a 3.2–3.8 V supply and features barbed fluidic connections with a compact design measuring 48 × 15.5 × 6.8 mm. Its single-use construction and chemically resistant wetted materials make it ideal for infusion therapy, portable drug-delivery devices, and medical monitoring systems.
Type: Liquid Flow Sensor
Full Scale Flow Rate (H₂O): 16.6 ml/min
Accuracy (H₂O): 5%
Repeatability (H₂O): 0.5%
Maximum Operating Pressure: 3 bar
Fluidic Connector Ports: Barbed Fittings
Supply Voltage: 3.2–3.8 V Max.
Supply Current: 6 mA Interfaces: I²C, RS485
Dimensions (L × W × H): 48 × 15.5 × 6.8 mm

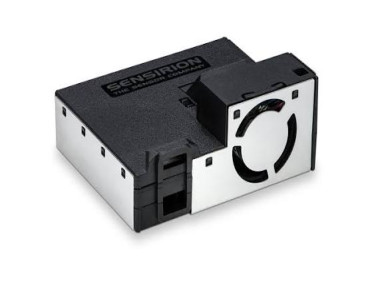

SPS30 Particulate matter Sensor
