NG # 09440019-HW-SENS-019

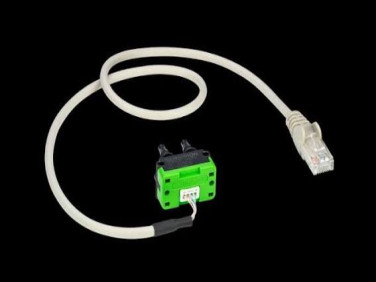

SEK-SDP8xx is a differential pressure evaluation kit designed for accurate measurement and testing of low differential pressures in air and non-aggressive gases. It includes an SDP810-500 Pa digital differential pressure sensor, connector cable, and quick-start guide. Operating with a 2.7–5.5 V supply and supporting a ±500 Pa measurement range, it is ideal for sensor evaluation, HVAC testing, airflow monitoring, and product development.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe SEK-SDP8xx evaluation kit features Sensirion's CMOSens® technology for reliable measurements, excellent repeatability, temperature compensation, and long-term stability with no zero-point drift. The included SDP810 sensor provides digital I²C communication and supports precise airflow and differential pressure evaluation. A SEK-SensorBridge is required separately to connect the kit to a computer for data visualization and analysis using SEK-ControlCenter software. Applications include ventilation systems, filter monitoring, air purifiers, and laboratory testing.
Type: Differential Pressure Sensor Evaluation Kit
Included Sensor: SDP810-500 Pa
Pressure Range: ±500 Pa
Supply Voltage: 2.7–5.5 V
Sensor Interface: I²C
Included Accessories: 1 × Connector Cable, Quick Start Guide
Required Accessory: SEK-SensorBridge (sold separately)
Applications: HVAC, Airflow Measurement, Filter Monitoring, Ventilation Systems
