NG # 09440022-HW-SENS-022

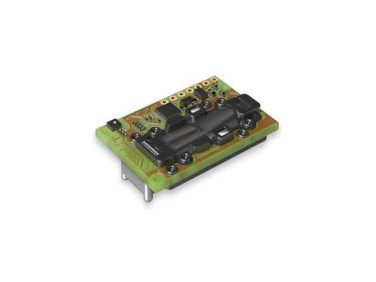

SCD30 is a high-accuracy environmental sensor module that measures carbon dioxide (CO₂), relative humidity, and temperature. Based on non-dispersive infrared (NDIR) technology and Sensirion’s CMOSens® platform, it offers a CO₂ measurement range of 400–10,000 ppm with accuracy of ±(30 ppm + 3% of measured value). Its compact design and multiple communication interfaces make it ideal for indoor air quality monitoring, HVAC systems, and smart building applications.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe SCD30 features integrated humidity and temperature sensing, dual-channel CO₂ detection for improved long-term stability, and factory calibration. It operates on a 3.3–5.5 V supply, consumes an average of 19 mA, and supports I²C, Modbus, and PWM interfaces. The module measures 35 × 23 × 7 mm and provides a CO₂ response time of 20 seconds, humidity accuracy of ±3% RH, and typical temperature accuracy of ±0.4°C. It is suitable for ventilation control, air quality monitoring, and energy-efficient building automation.
Type: CO₂, Humidity and Temperature Sensor CO₂
Measurement Range: 400–10,000 ppm CO₂
Accuracy: ±(30 ppm + 3% of measured value)
CO₂ Response Time: 20 s
Temperature Stability: 2.5 ppm/°C
Humidity Range: 0–95% RH
Humidity Accuracy: ±3% RH
Humidity Response Time: 8 s
Temperature Accuracy: ±0.4°C
Temperature Response Time: 10 s
Supply Voltage: 3.3–5.5 V
Average Supply Current: 19 mA
Max. Supply Current: 75 mA
Interfaces: I²C, Modbus, PWM
Operating Temperature: 0 to +50°C
Dimensions (L × W × H): 35 × 23 × 7 mm
