NG # 09440012-HW-SENS-012
SKU # 0012-HW-SENS-012

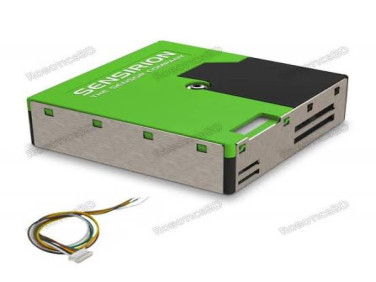

SPS30 is a high-precision particulate matter sensor designed for air quality monitoring. Using laser-scattering technology and innovative contamination-resistance technology, it measures PM1.0, PM2.5, PM4, and PM10 concentrations. Its compact design, calibrated digital output, and long operational lifetime make it suitable for HVAC systems and indoor air quality monitoring devices.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe Sensirion SPS30 is an MCERTS-certified optical particulate matter sensor offering reliable, long-term air quality measurement. It measures particulate matter concentrations from 0 to 1,000 µg/m³ and features I²C and UART digital interfaces. Operating at 4.5–5.5 V, the sensor has compact dimensions of 41 × 41 × 12 mm and a lifetime exceeding ten years. Its contamination-resistant design and advanced particle-size analysis make it ideal for air purifiers, HVAC equipment, and environmental monitoring applications.
Type: Particulate Matter (PM) Sensor
Measurement Range: 0–1000 µg/m³
Particle Size Range: PM1.0, PM2.5, PM4, PM10
Mass Concentration Precision: ±10%
Measurement Principle: Laser Scattering
Supply Voltage: 4.5–5.5 V
Average Supply Current: 55 mA
Max. Supply Current: 80 mA
Interface: I²C, UART
Operating Temperature: -10 to +60°C
Operating Humidity: 0–95% RH
Dimensions: 41 × 41 × 12 mm
Lifetime: More than 10 years
