NG # 09440016-HW-SENS-016

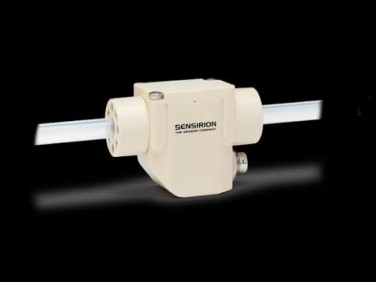

SLQ-QT500 is a high-precision liquid flow meter designed for measuring water-based and hydrocarbon-based liquids at flow rates up to 120 ml/min. Featuring non-invasive thermal measurement technology, a straight flow channel, and no moving parts, it supports high-viscosity liquids and particle-containing fluids. Its excellent chemical compatibility makes it suitable for semiconductor coating systems, precision dispensing, and industrial liquid monitoring applications.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe SLQ-QT500 delivers fast, reliable liquid flow measurement with a response time below 50 ms and repeatability of 0.5%. It supports water and isopropyl alcohol (IPA) calibration, a maximum operating pressure of 12 bar, and a 3.3–3.7 V supply voltage. The sensor offers analog voltage, analog current, I²C, and RS485 interfaces. Its quartz glass flow channel and PFA fluid connections make it suitable for high-purity processes and demanding chemical applications
Type: Liquid Flow Meter
Full Scale Flow Rate (H₂O): 120 ml/min
Accuracy (H₂O): 5% Repeatability (H₂O): 0.5%
Full Scale Flow Rate (IPA): 120 ml/min
Accuracy (IPA): 5% Repeatability (IPA): 0.5%
Maximum Operating Pressure: 12 bar
Fluidic Connector Ports: 1/4-inch Tubing
Supply Voltage: 3.3–3.7 V
Average Supply Current: 5.1 mA
Max. Supply Current: 6.5 mA
Interfaces: Analog Voltage, Analog Current, I²C, RS485
