NG # 09440015-HW-SENS-015

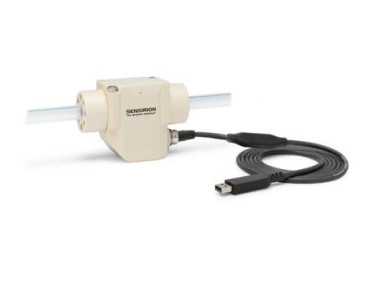

Sensirion SLI-0430 is a high-precision liquid flow meter designed for measuring very low flow rates of water and hydrocarbon-based liquids. It supports flow rates up to 80 µl/min for water and 500 µl/min for isopropyl alcohol (IPA). Featuring non-invasive thermal measurement technology, a straight glass flow channel, and multiple interface options, it is ideal for demanding industrial automation and life-science applications.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe SLI-0430 delivers accurate, repeatable liquid flow measurement with 5% accuracy and 0.5% repeatability for water. It supports a maximum operating pressure of 50 bar and operates on a 4–6 V DC supply. The sensor offers analog voltage, analog current, I²C, and RS485 interfaces, with an IP65-rated enclosure. Its compact design, chemically resistant materials, and fast response make it suitable for precision dosing, liquid handling, and industrial process monitoring.
Type: Liquid Flow Meter
Full Scale Flow Rate (H₂O): 80 µl/min
Accuracy (H₂O): 5%
Repeatability (H₂O): 0.5%
Full Scale Flow Rate (IPA): 500 µl/min
Accuracy (IPA): 20% Repeatability (IPA): 1%
Maximum Operating Pressure: 50 bar
Fluidic Connector Ports: 1/4-28 Flat-Bottom
Supply Voltage: 4–6 V
Average Supply Current: 6.8 mA Max.
Supply Current: 6.8 mA
Interfaces: Analog Voltage, Analog Current, I²C, RS485
Operating Temperature: +10 to +50°C
Dimensions (L × W × H): 58 × 42.5 × 20 mm
Protection Rating: IP65
Wetted Materials: Quartz Glass, PEEK

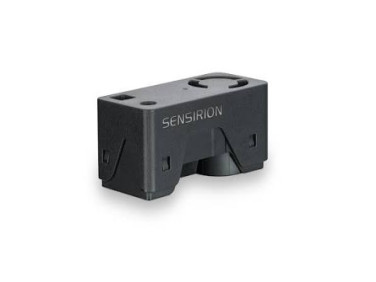

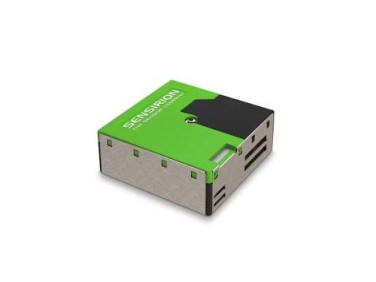

SPS30 Particulate matter Sensor

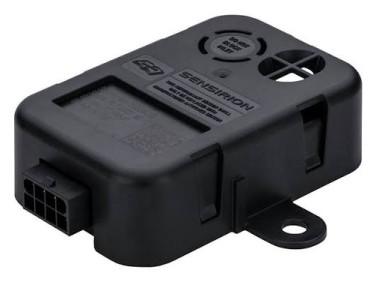

SGD43S-M3-S5 Refrigerant Leakage Sensor
SFM4300-20-B Pressure-resistant Flow Sensor

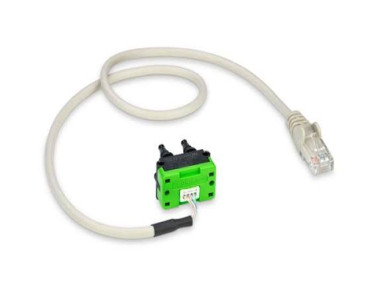

SEK-SDP8xx Differential Pressure Sensor
