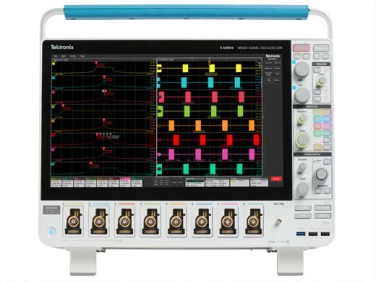

5 Series B MSO 8 Channel Mixed Signal Oscilloscope

  • NG # 04408-HW-TEK-007

The Tektronix 5 Series B MSO 8-Channel Mixed Signal Oscilloscope (MSO58B) offers 8 FlexChannel inputs (convertible to 64 digital channels), bandwidths from 350 MHz to 2 GHz, a 6.25 GS/s sample rate, large 15.6" HD touchscreen, and extensive analysis tools like Spectrum View, with key specs including 12-bit ADC (up to 16-bit High Res), >500k waveforms/s capture, and optional features like built-in AWG and advanced serial decoding.

Manufactured By :
Tektronix
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Get a complete view of your design with high-fidelity waveforms, insightful measurements, unique spectrum analysis, and flexible probing. Experience the intuitive user interface appreciated by engineers everywhere

Specification

  • Channels: 8 FlexChannel Inputs (each can be 1 analog or 8 digital with TLP058 probe for up to 64 channels).
  • Bandwidth: 350 MHz, 500 MHz, 1 GHz, 2 GHz (upgradeable).
  • Sample Rate: 6.25 GS/s (all analog/digital channels).
  • Record Length: 62.5 Mpoints standard (up to 500 Mpoints optional).
  • Display: 15.6" HD (1920x1080) Capacitive Touchscreen.
  • Vertical Resolution: 12-bit ADC (up to 16-bit High-Res Mode).
  • Waveform Capture Rate: >500,000 waveforms/second.
