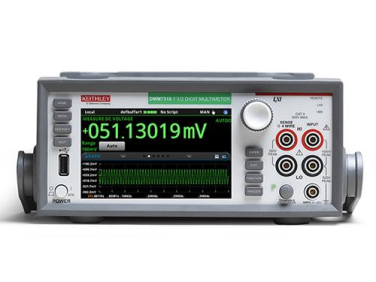

DMM7510 7.5 Digit Graphical Sampling Multimeter

  • NG # 04415-HW-TEK-014

The DMM7510 7.5 digit multimeter combines a precision, high-resolution digital multimeter (DMM), graphical touchscreen display, and high-speed, high-resolution digitizer to create the first graphical sampling multimeter. With pA-level sensitivity and 1Msample/s sampling, it accurately measures ultra-low sleep mode currents and transmit drain currents from wireless devices.

Manufactured By :
Tektronix
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The DMM7510’s digitizer can measure the current drain in all the IoT device’s operating states. Capture µA sleep mode currents and transmit currents up to 1A with the combination of sensitive and fast current measurements from the high resolution, high speed digitizer.

Specification

  • Resolution: 7.5 Digits
  • DC Voltage: 10 nV – 1010 V
  • DC Current: 1 pA – 10.1 A
  • Resistance (2/4-wire): 0.1 µΩ – 1.2 GΩ
  • AC Current (TRMS): 1 nA – 10.1 A
  • Frequency: 3 Hz – 500 kHz
  • Digitizer: 1 MS/sec, captures waveforms
  • Memory: Up to 27.5 Million Readings
  • Display: 5-inch Color Touchscreen
  • Interfaces: GPIB, USB, LAN (LXI), Digital I/O,
  • Accuracy (1-yr): 14 ppm (DCV), 60 ppm (DCI), 24 ppm (Resistance)
