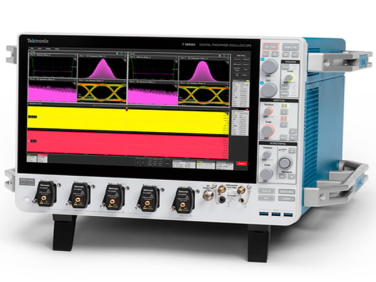

7 Series DPO Digital Phosphor Oscilloscope

  • NG # 04412-HW-TEK-011

The 7 Series DPO delivers unparalleled signal fidelity, high ENOB, low noise, low jitter, fast measurement throughput, and an award-winning TekScope® user interface making it ideal for meeting the evolving needs of high-speed serial, high-energy physics, and key RF applications.

Manufactured By :
Tektronix
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Tektronix 7 Series DPO oscilloscopes are high-performance instruments offering up to 25 GHz bandwidth, 125 GS/s sample rate on 4 channels, 10-bit ADC resolution, deep memory (up to 2Gpts), and advanced triggering (Pinpoint) with a large touch screen, designed for complex signal analysis with features like FastAcq and Tech HSI for high-speed data transfer. Key specs include low noise, high ENOB, and versatile probe support (TekConnect/TriMode) for demanding applications.

Specification

  • Bandwidth: 8 GHz to 25 GHz (customer upgradeable).
  • Channels: 4 Analog (with an Aux In).
  • Sample Rate: Up to 125 GS/s on all channels.
  • ADC Resolution: 10-bit.
  • Record Length: 500 Mpoints standard, up to 1 or 2 Gpoints optional.
  • Waveform Capture Rate: High FastAcq/FastFrame rates for transient capture.
  • Triggering: Pinpoint Triggering, Visual Trigger, advanced logic/state/pattern triggers.
  • Display: 15.6-inch HD Capacitive Touch Screen (1920x1080).
  • Probes: Compatible with TekConnect and P7700/P7600 TriMode probes.
  • Noise/Jitter: Low random noise and intrinsic jitter (e.g., 60-70 fs).
  • Data Transfer: Tech HSI server, 10 Gbps SFP+ port for up to 1 GB/s transfer.
  • Operating System: Closed Linux (standard) or Open Windows 10 (optional) on removable SSD.
