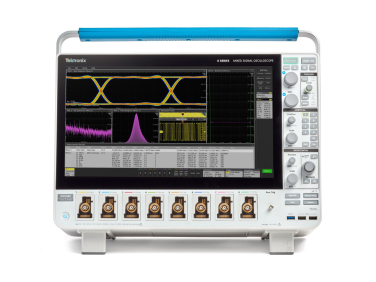

6 Series B MSO Mixed Signal Oscilloscope

  • NG # 04410-HW-TEK-009

With the lowest input noise and up to 10 GHz analog bandwidth, the 6 Series MSO provides the best signal fidelity for analyzing and debugging today's embedded systems with GHz clock and bus speeds.

Manufactured By :
Tektronix
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The remarkably innovative pinch-swipe-zoom touchscreen user interface coupled with the industry's largest high-definition display and up to 8 FlexChannel inputs that let you measure one analog or eight digital signals per channel, the 6 Series MSO is ready for today's toughest challenges and tomorrow's too.

Specification

  • 10 GHz bandwidth
  • 8 Flex Channels
  • Each Flex Channel provides one analog signal or eight digital logic inputs with optional TLP058 logic probe
  • Sample rate: Real-time: 50 GS/s (2 channels), 25 GS/s (4 channels), 12.5 GS/s (> 4 channels)
  • Record length: 62.5Mpoints standard (expandable via option)
  • Waveform capture rate: >500,000 waveforms/s
  • Vertical resolution: 12-bit ADC, up to 16-bit in High Res mode
  • 15.6" capacitive touchscreen
  • Spectrum View: Frequency-domain analysis with independent controls for frequency and time domains
