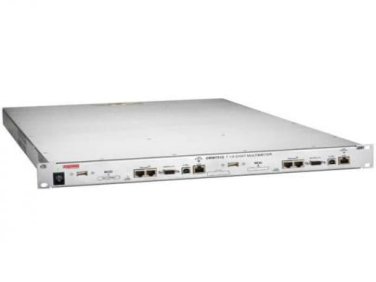

Keithley DMM7512 Dual Channel 7.5 Digit Sampling Multimeter

  • NG # 04416-HW-TEK-015

The DMM7512 7.5 digit multimeter combines two full-function, high accuracy, high sampling speed DMMs into a 1U high, full rack wide form factor chassis. The compact chassis saves rack space in high-instrument density test systems without compromising measurement performance. Each DMM has identical functionality, and they are entirely independent of each other.

Manufactured By :
Tektronix
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The DMM7512 consists of two, independent, identical, 7½-digit DMM7510 digital multimeters (DMMs) with a few less measurement functions. The two DMM7512 DMMs have the same accuracy, sensitivity, and speed as the DMM7510 so that the DMM7512 can be seamlessly integrated into a test system that previously used DMM7510s.

Specification

  • Channels: 2 (Independent DMMs)
  • Resolution: 7.5 Digits
  • DC Voltage Range: 10 nV – 1000 V
  • DC Current Range: 1 pA – 3 A
  • Resistance Range: 0.1 µΩ – 1 GΩ
  • Basic 1-Year DCV Accuracy: As low as 14 ppm
  • Measurement Speed (Integrating A/D): Up to 0.0005 NPLC
  • Digitizer: 1 Msample/s, 18-bit (Voltage & Current)
  • Sensitivity: 10 nV (V), 0.1 µΩ (R), 1 pA (I)
  • Functions: DC/AC Voltage, DC/AC Current, Resistance, Temperature, Capacitance
  • Memory: Stores up to 27.5M timestamped readings
  • Interfaces: USB-TMC, LAN (LXI), TSP-Link
  • Features: Embedded Test Script Processor (TSP), Synchronized Digitizing (V & I), Offset Compensated Ohms, Dry Circuit
  • Form Factor: 1U High, Full Rack Width
