NG # 00400-HW-BATEC-0169

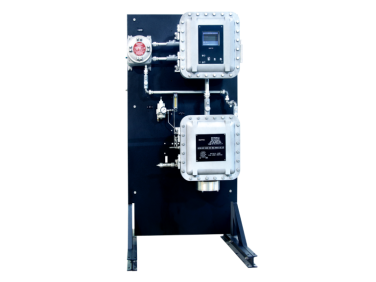

The BARTEC P-820LT Cloud Point Analyzer is an online process analyzer designed for continuous measurement of the cloud point of hydrocarbon products. Cloud point is the temperature at which wax crystals begin to form as a hydrocarbon sample is cooled, causing it to become cloudy. The analyzer is particularly suited to refinery and hydrocarbon-processing applications where continuous product-quality monitoring is required.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe P-820LT uses automatic optical detection with absorbance or 90° back-scatter measurement and correlates with ASTM D2500. Its integrated cryogenic cooling system can cool the measurement cell down to -125°C, eliminating the need for an external cooling system. A high-pressure detection cell also allows measurements at process pressure, reducing or eliminating the need for atmospheric sample recovery.
| Product | BARTEC P-820LT Cloud Point Analyzer |
| Analyzer Type | Online physical-property/process analyzer |
| Measurement | Hydrocarbon Cloud Point |
| Measuring Range | -125 to +25°C (-193 to +77°F) |
| Measurement Method | Automatic optical detection |
| Detection | Straight-path absorbance or 90° back-scatter |
| Standard / Correlation | ASTM D2500 |
| Typical Cycle Time | Less than 10 minutes |
| Repeatability | Less than 0.25°C (0.5°F) |
| Cooling System | Internal cryogenic cooler |
| Minimum Cooling Temperature | -125°C (-193°F) |
| Sample Recovery | Not normally required; sample can return directly to process |
| Display | 7-inch color graphics display |
| Analog Outputs | Cloud point, cell temperature and optical signals |
| Digital Outputs | Cloud-point alarm, analyzer fault and programmable read signal |
| Digital Inputs | Customer alarm, remote standby, stream switching and validation |
| Communication | Optional Modbus TCP/IP or Serial/RTU |
| Weight | Approx. 340 kg (750 lb) |
| Dimensions | Approx. 940 × 1803 × 762 mm |
| Hazardous-Area Protection | ATEX / IECEx / CSA-CUS certified configurations |
