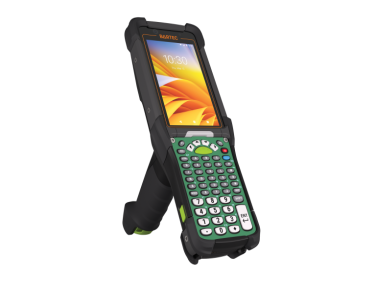

The BARTEC MC9400/9450EX2 is an ultra-rugged, intrinsically safe Android mobile computer designed for barcode scanning, inventory management, warehouse operations, manufacturing, logistics, ports, yards, and field service in hazardous industrial environments. It is approved for ATEX/IECEx Zone 2/22 and UL Class I, II, III Division 2 applications
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe device combines the proven Zebra MC9400/MC9450 platform with BARTEC explosion-protection technology. Its SE58 1D/2D Extended Range Scan Engine with IntelliFocus™ can capture barcodes from distances of up to approximately 30.5 meters, depending on barcode type, size, and quality. This extended scanning capability is particularly useful for warehouse racks and large industrial storage areas.
The MC9400EX2 is the WLAN-only version, while the MC9450EX2 additionally supports cellular connectivity through its WWAN configuration. Optional connectivity includes private and public 5G, while Wi-Fi 6E provides high-speed wireless networking. The platform also supports Zebra Mobility DNA tools for enterprise device management, security, deployment, and productivity.
| Product Type | Rugged Intrinsically Safe Mobile Computer |
| Hazardous Area | ATEX/IECEx Zone 2/22 |
| North American Certification | NEC 500 Class I, II, III Division 2 |
| Gas Group Options | IIB and IIC models |
| Processor | Qualcomm® 4490 Octa-Core, 2.4 GHz |
| RAM | 6 GB |
| Internal Storage | 128 GB Flash |
| Storage Expansion | MicroSD, up to 2 TB |
| Operating System | Android 14; hardware supports upgrades up to Android 18 |
| Display | 4.3-inch LED-backlit display |
| Resolution | 800 × 400 pixels, WVGA |
| Touchscreen | Capacitive touchscreen |
| Touch Operation | Finger, stylus or gloves, depending on selected mode |
| Front Glass | Corning Gorilla Glass |
| Barcode Scanner | Zebra SE58 1D/2D Extended Range Scan Engine |
| Scanning Technology | IntelliFocus™ with green laser aimer |
| Scanning Range | Up to approximately 30.5 m |
| Keypads | 29-key, 43-key, 53-key Standard or 53-key VT |
| Mobile Connectivity | MC9400EX2: WLAN; MC9450EX2: WWAN/5G options |
| Wi-Fi | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| NFC | ISO 14443 Type A/B, FeliCa and ISO 15693 |
| SIM | 1 Nano SIM + 1 eSIM on MC9450EX2 |
| Camera | MC9450EX2 models: 8 MP front + 16 MP rear autofocus |
| Battery | 3.6 V / 7000 mAh / 25.2 Wh Li-ion |
| Battery Features | Fast charging; hot-swap backup with temporary session persistence outside Ex areas |
| Dimensions | 88 × 240 × 189 mm |
| Weight | Approx. 743 g including battery |
| Protection Rating | IP65; IP68 with battery according to applicable sealing specifications |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +70°C without battery |
| Humidity | 5–95%, non-condensing |
| Drop Resistance | Up to 3.65 m drop to concrete at room temperature |
| Tumble Resistance | 6,000 tumbles from 1 m |
| Audio | Speaker, microphone, PTT and Bluetooth headset support |
| External I/O | USB 2.0 via bottom pogo connector |
| Sensors | Light sensor, magnetometer/eCompass, 3-axis accelerometer and MEMS gyro |
| Typical Applications | Warehouse, manufacturing, logistics, inventory, asset tracking, ports, yards and field service |
