NG # 00400-HW-BATEC-0165

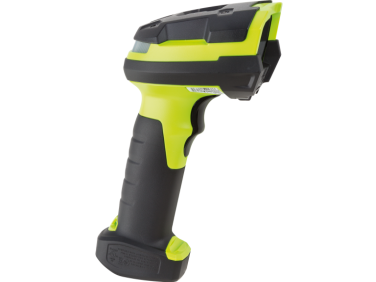

The BARTEC BCS3608ex-NI is a rugged, corded 1D/2D barcode scanner designed for stationary or fixed-position data capture in hazardous industrial environments. It is certified for ATEX/IECEx Zone 2/22 and NEC/CEC Class I, II, III Division 2, making it suitable for areas where explosive gases, vapors, dust, or fibers may occasionally be present
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe scanner is based on Zebra's industrial scanning technology and is available with either the SE4750-HP high-performance or SE4850-ER extended-range scan engine. It can capture 1D and 2D barcodes, postal codes and OCR, while its rugged housing is designed for demanding industrial environments. BARTEC specifies protection up to IP65, operation from -20°C to +50°C, and resistance to multiple drops from up to 3 meters onto concrete.
Unlike the wireless BCS3678ex-NI, the BCS3608ex-NI uses a cabled connection. It requires a compatible BARTEC Universal Supply Module (USM) or, for certain Zone 2/22 configurations, an approved HMI limiting cable to provide compliant power and data communication.
| Product Type | Corded Industrial Hand-held Barcode Scanner |
| Model | BCS3608ex-NI |
| Typical Order Number | B7-A2S4-1HP0 |
| Extended-Range Version | B7-A2S4-1ER0 |
| Hazardous Area | ATEX/IECEx Zone 2/22 |
| North American Certification | Class I, II, III Division 2 |
| ATEX Marking | II 3G Ex ic op is IIC T4 Gc; II 3D Ex ic op is IIIC T135°C Dc |
| IECEx Marking | Ex ic op is IIC T4 Gc; Ex ic op is IIIC T135°C Dc |
| NEC/CEC | Class I Div. 2 Groups A, B, C, D; Class II Div. 2 Groups F, G; Class III; T4 |
| Scan Technology | 1D/2D Imager |
| Standard Scan Engine | Zebra SE4750-HP |
| Extended-Range Engine | Zebra SE4850-ER |
| Barcode Support | 1D, 2D, postal codes and OCR |
| Illumination | 2 × warm-white LEDs |
| Connectivity | Corded |
| Supported Interfaces | RS232, RS422, RS485 or USB via compatible supply module |
| Input Voltage | 5 V |
| Typical Operating Current | 500 mA |
| Maximum Input Power | 2.75 W |
| Display/Indicators | Direct decoding display, LEDs, audible signal and vibration |
| Dimensions (H × W × D) | 185 × 76 × 132 mm |
| Weight | Approx. 309 g, excluding cord |
| Protection Rating | IP65 |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5–95%, condensing |
| Ambient Light Tolerance | Up to 108,000 lux |
| Drop Resistance | Multiple drops from up to 3 m onto concrete |
| Housing Material | Lexan® EXL 1414 |
| Typical Applications | Inventory, manufacturing, logistics, inspection, warehouse and industrial data capture |
