NG # 00400-HW-BATEC-0159

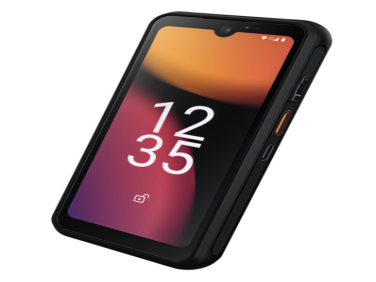

The BARTEC SP9EX1 is a rugged 5G intrinsically safe smartphone designed for communication, data collection, field service, inspection, and digital workflows in hazardous industrial environments. It is certified for ATEX/IECEx Zone 0, Zone 1 and Zone 21, as well as NEC/CEC Class I, II, III Division 1 applications.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe SP9EX1 combines explosion protection with modern smartphone performance, featuring a Qualcomm QCM6490 octa-core processor, 8 GB RAM, 128 GB storage, 6.1-inch AMOLED display, 5G connectivity, Wi-Fi 6, Bluetooth 5.2, NFC and GNSS. It also includes a 48 MP rear camera and 8 MP front camera for field documentation and video communication.
Its compact design, glove-compatible touchscreen, Gorilla Glass Victus, IP68 protection and programmable function buttons make it suitable for demanding environments such as oil & gas, chemical, pharmaceutical, energy, manufacturing and industrial maintenance. BARTEC currently supports the SP9EX1 with Android 15, with the platform designed for future Android upgrades and long-term enterprise support.
| Product Type | Intrinsically Safe 5G Smartphone |
| Part Number | 17-S19P-31110110 |
| Hazardous Area | ATEX/IECEx Zone 0, 1 & 21; NEC/CEC Division 1 |
| ATEX Certification | II 1G Ex ia IIC T4 Ga; II 2D Ex ia IIIC T135°C Db |
| IECEx Certification | Ex ia IIC T4 Ga; Ex ia IIIC T135°C Db |
| NEC/CEC | Class I, II, III Division 1, Groups A–G, T4 |
| Processor | Qualcomm QCM6490 Octa-Core, 2.7 GHz |
| RAM | 8 GB |
| Storage | 128 GB |
| Operating System | Android 15; hardware supports future Android versions up to Android 15 in the original datasheet, with later software updates now available |
| Display | 6.1-inch AMOLED |
| Resolution | 1080 × 2340 pixels |
| Display Protection | Gorilla Glass Victus |
| Touchscreen | Capacitive; supports bare finger, gloves and stylus |
| Rear Camera | 48 MP autofocus |
| Front Camera | 8 MP |
| Video | 4K video recording |
| Mobile Network | 5G NR, LTE, UMTS, GSM |
| SIM | Dual SIM: Nano SIM + eSIM |
| Wi-Fi | Wi-Fi 6, IEEE 802.11a/b/g/n/ac/ax |
| Wi-Fi Features | 2×2 MU-MIMO, dual-band simultaneous |
| Bluetooth | Bluetooth 5.2 |
| NFC | NFC read/write, contactless payment and card emulation |
| GNSS | GPS, A-GPS, GLONASS, Galileo, BeiDou |
| Battery | Li-ion, 3.68 V / 4300 mAh / 15.8 Wh |
| Protection Rating | IP68 |
| Operating Temperature | -20°C to +50°C according to the 2024 datasheet; newer documentation specifies up to +55°C for the certified device |
| Dimensions | 168.7 × 83.4 × 17.9 mm |
| Weight | Approx. 350 g with battery |
| USB | USB-C |
| Programmable Buttons | 2, for PTT, emergency call or other functions |
| Sensors | Accelerometer/Gyroscope, Magnetometer, Barometer, Proximity and Ambient Light |
| Audio | Dual microphones, speaker, vibration and Bluetooth headset support |
| Typical Applications | Oil & gas, chemical, pharmaceutical, energy, utilities, manufacturing, inspection and field service |
