NG # 00400-HW-BATEC-0164

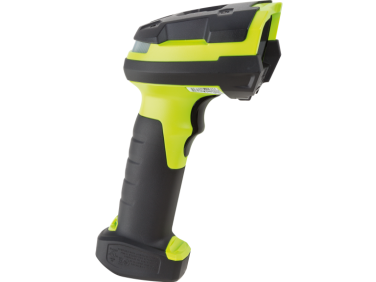

The BARTEC BCS3678ex-IS is a rugged Bluetooth 1D/2D hand-held barcode scanner designed for use in hazardous industrial environments classified as ATEX/IECEx Zone 1/21 and NEC/CEC Class I, II and III Division 1. It is designed for mobile data capture where reliable barcode scanning and certified explosion protection are required.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe scanner is based on the Zebra DS3678 platform and is available with high-performance and extended-range scan-engine configurations. The SE4750-HP version provides fast 1D/2D barcode capture, while the SE4850-ER configuration provides extended-range scanning. BARTEC identifies the BCS3678ex-IS Bluetooth model as 17-A1S4-2HP1 for the SE4750-HP configuration.
The wireless Bluetooth design allows the scanner to connect with compatible mobile computers, tablets, phones, PCs, and BARTEC base stations. It is particularly suitable for oil & gas, chemical processing, manufacturing, warehousing, logistics, inventory, inspection, and maintenance applications in hazardous areas.
| Product Type | Intrinsically Safe Bluetooth Hand-held Barcode Scanner |
| Model | BCS3678ex-IS |
| Order Number – HP | 17-A1S4-2HP1 |
| Hazardous Area | ATEX/IECEx Zone 1/21 |
| North American Certification | Class I, II, III Division 1 |
| ATEX Marking | II 1G Ex ia ma op is IIC T4 Ga; II 1D Ex ia ma op is IIIC T135°C Da |
| IECEx Marking | Ex ia ma op is IIC T4 Ga; Ex ia ma op is IIIC T135°C Da |
| NEC/CEC | Class I Div. 1 Groups A, B, C, D; Class II Div. 1 Groups E, F, G; Class III Div. 1; T4 |
| Ingress Protection | IP64 |
| Scan Type | 1D/2D Imager |
| Scan Engine – HP | Zebra SE4750-HP |
| Scan Engine – ER | Zebra SE4850-ER configuration available |
| Barcode Types | 1D, 2D, postal codes and OCR |
| Connectivity | Bluetooth |
| Bluetooth Version | Class 1 Bluetooth 4.0 LE |
| Wireless Operation | Connects to compatible Bluetooth hosts and BARTEC base stations |
| Battery | Li-ion, 3.6 V / 2800 mAh / 10.08 Wh |
| Battery Life | Up to 100,000 scans per charge with applicable SE4750-HP configuration |
| Operating Temperature | -20°C to +50°C |
| Charging Temperature | 0°C to +40°C |
| Storage Temperature | -20°C to +50°C with battery; up to +70°C without battery, depending on configuration |
| Typical Applications | Inventory, warehouse, logistics, manufacturing, inspection, maintenance and field service |
