NG # 00400-HW-BATEC-0163

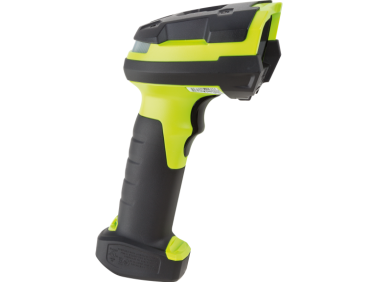

The BARTEC BCS3678ex-NI is a rugged Bluetooth 1D/2D barcode scanner designed for use in hazardous industrial environments classified as ATEX/IECEx Zone 2/22 and NEC/CEC Class I, II and III Division 2. It is based on the Zebra DS3678 platform and is designed for reliable barcode data capture in demanding applications such as manufacturing, warehousing, logistics, oil & gas, chemical processing, inventory management, and field service
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe scanner is available with different scan engines, including the SE4750-HP High Performance, SE4850-ER Extended Range, and SE58-XR Extended Range configurations. The Bluetooth design allows the scanner to connect wirelessly to compatible computers, tablets, smartphones, or BARTEC base stations, reducing the need for cables during field operations
The BCS3678ex-NI is built for demanding industrial environments, with IP65 protection, a rugged housing, and an operating temperature range of -20°C to +50°C. Its 3,150 mAh lithium-ion battery can support up to 100,000 scans per charge with the SE4750-HP configuration, according to BARTEC's current charging documentation.
| Product Type | Bluetooth Hand-held Barcode Scanner |
| Hazardous Area | ATEX/IECEx Zone 2/22 |
| North American Certification | NEC/CEC Class I, II, III Division 2 |
| ATEX Marking | II 3G Ex ic op is IIC T4 Gc; II 3D Ex ic op is IIIC T135°C Dc |
| IECEx Marking | Ex ic op is IIC T4 Gc; Ex ic op is IIIC T135°C Dc |
| Protection Rating | IP65 |
| Scan Type | 1D/2D Imager |
| High Performance Engine | Zebra SE4750-HP |
| Extended Range Engine | Zebra SE4850-ER |
| Extra-Long Range Option | Zebra SE58-XR |
| Barcode Support | 1D and 2D barcodes, including QR and Data Matrix |
| Connectivity | Bluetooth |
| Bluetooth Function | Wireless connection to compatible mobile computers, tablets, PCs and base stations |
| Battery | Lithium-ion |
| Battery Capacity | 3.6 V / 3150 mAh / 11.34 Wh |
| Typical Battery Life | Up to 100,000 scans per charge with SE4750-HP |
| Operating Temperature | -20°C to +50°C |
| Charging Temperature | 0°C to +40°C |
| Storage Temperature | -40°C to +70°C without battery |
| Relative Humidity | 5%–95%, condensing |
| Ambient Light Tolerance | 0–108,000 lux |
| Rugged Design | Ultra-rugged industrial construction |
| Base Station | G7-A0Z0-0010 for Zone 2/22/Division 2 configuration |
| Battery Charger | G7-A0Z0-0013 4-slot charging station |
| Typical Applications | Inventory, warehouse, logistics, manufacturing, inspection, maintenance and field service |
