NG # 00400-HW-BATEC-0162

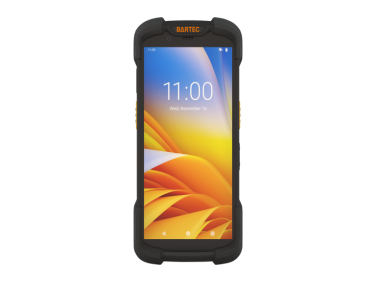

The BARTEC TC78ex-NI is a rugged, intrinsically safe Android touch computer designed for mobile computing, barcode scanning, communication, inspection, inventory, and field-service applications in hazardous industrial environments. It is certified for ATEX/IECEx Zone 2/22 and NEC/CEC Class I, II and III Division 2, making it suitable for areas where flammable gases, vapors, dust, or fibers may occasionally be present.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteBuilt on the Zebra TC78 platform, the TC78ex-NI combines a 6-inch Full HD+ touchscreen, Qualcomm 6490 octa-core processor, integrated Zebra SE55 1D/2D Advanced Range Scan Engine, 5G-ready cellular connectivity, Wi-Fi 6E and Bluetooth 5.2. The SE55 scanner with IntelliFocus™ technology provides long-range barcode capture, with a maximum range of approximately 12.2 meters, depending on barcode characteristics and operating conditions.
The device is designed for demanding industrial environments with IP68 protection, MIL-STD-810H ruggedness, a glove- and stylus-compatible touchscreen, and a removable 4,680 mAh battery with hot-swap capability. BARTEC currently delivers the TC78ex-NI with Android 14, while the hardware supports future Android versions up to Android 16.
| Product Type | Intrinsically Safe Rugged Touch Computer |
| Hazardous Area | ATEX/IECEx Zone 2/22 |
| North American Certification | NEC/CEC Class I, II, III Division 2 |
| Processor | Qualcomm® 6490 Octa-Core, 2.7 GHz |
| RAM | 4 GB |
| Internal Storage | 64 GB Flash |
| Storage Expansion | MicroSD, up to 2 TB |
| Operating System | Android 14; hardware supports upgrades up to Android 16 |
| Display | 6-inch Full HD+ color display |
| Resolution | 2160 × 1080 pixels |
| Touchscreen | Multi-mode capacitive touchscreen |
| Touch Operation | Finger, glove and stylus support |
| Glass | Corning® Gorilla® Glass |
| Barcode Scanner | Zebra® SE55 1D/2D Advanced Range Scan Engine |
| Scanning Technology | IntelliFocus™ |
| Scanning Range | Up to approximately 12.2 m |
| Rear Camera | 16 MP autofocus with LED flash |
| Front Camera | 8 MP |
| Cellular Connectivity | 5G-capable WWAN |
| Wi-Fi | Wi-Fi 6E, 802.11 a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |
| NFC | ISO 14443 A/B, MIFARE, FeliCa and ISO 15693 |
| GNSS | GPS, Galileo, GLONASS, BeiDou |
| SIM | 1 × Nano SIM + 1 × eSIM |
| Battery | 3.85 V / 4,680 mAh / 18.01 Wh Li-Polymer |
| Battery Feature | Removable; hot-swap capable |
| USB | USB-C / USB 3.0 |
| Dimensions | 176.8 × 85.8 × 28.4 mm |
| Weight | Approx. 349 g including battery |
| Protection | IP68 |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +70°C without battery |
| Ruggedness | MIL-STD-810H |
| Audio | Speaker, microphone, PTT-ready and Bluetooth headset support |
| Sensors | Light, magnetometer, accelerometer, gyroscope, pressure and proximity |
| Typical Applications | Inventory, warehousing, logistics, manufacturing, inspection, maintenance, field service and asset tracking |
