NG # 00400-HW-BATEC-0158

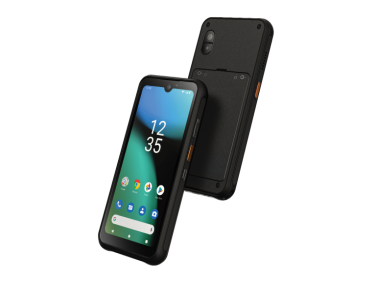

The BARTEC SP9EX2 is a compact, rugged 5G intrinsically safe smartphone designed for professionals working in hazardous industrial environments classified as ATEX/IECEx Zone 2/22 and NEC/CEC Class I, II, III Division 2. It combines explosion-protection technology with modern smartphone performance, making it suitable for field communication, inspections, maintenance, remote support, documentation, and industrial data applications.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe SP9EX2 features a 6.1-inch AMOLED display, Qualcomm QCM6490 octa-core processor, 8 GB RAM and 128 GB storage, along with 5G, Wi-Fi 6, Bluetooth 5.2, NFC, and GNSS connectivity. Its 48 MP rear and 8 MP front cameras support high-quality photography and 4K video recording for field documentation.
The smartphone is built for demanding industrial conditions, featuring IP68 protection, MIL-STD-810H-tested drop resistance, glove-compatible touchscreen operation, and an operating temperature range of -20°C to +55°C. The latest BARTEC datasheet specifies Android 15, with upgrade capability to Android 16.
| Product Type | Intrinsically Safe 5G Smartphone |
| Part Number | B7-S29P-31110110 |
| Hazardous Area | ATEX/IECEx Zone 2/22; NEC/CEC Division 2 |
| ATEX Marking | II 3G Ex ic IIC T4 Gc; II 3D Ex ic IIIC T135°C Dc |
| IECEx Marking | Ex ic IIC T4 Gc; Ex ic IIIC T135°C Dc |
| NEC/CEC | Class I, II, III Division 2; Groups A, B, C, D / F, G; T4 |
| Processor | Qualcomm QCM6490 Octa-Core, 2.7 GHz |
| RAM | 8 GB |
| Storage | 128 GB |
| Operating System | Android 15; upgradeable to Android 16 |
| Display | 6.1-inch AMOLED FHD+ |
| Resolution | 1080 × 2340 pixels |
| Display Protection | Gorilla Glass Victus, 8th generation |
| Touch Operation | Capacitive; finger, glove and stylus operation |
| Rear Camera | 48 MP autofocus |
| Front Camera | 8 MP |
| Video | Up to 4K video recording |
| 5G | 5G NR |
| LTE | Multi-band LTE |
| SIM | Dual SIM: 1 × Nano SIM + 1 × eSIM |
| Wi-Fi | Wi-Fi 6, 802.11a/b/g/n/ac/ax, 2×2 MU-MIMO |
| Bluetooth | Bluetooth 5.2 |
| NFC | NFC read/write, contactless payment and card emulation |
| GNSS | GPS, A-GPS, GLONASS, Galileo, BeiDou |
| Battery | 3.68 V / 4300 mAh / 15.8 Wh Li-ion |
| USB | USB-C |
| Dimensions | 168.7 × 83.4 × 17.9 mm |
| Weight | Approx. 350 g with battery |
| Protection Rating | IP68 |
| Rugged Standard | MIL-STD-810H tested |
| Operating Temperature | -20°C to +55°C |
| Programmable Keys | 2 function keys for PTT, emergency call or other functions |
| Sensors | Accelerometer/Gyroscope, Magnetometer/Compass, Barometer, Proximity, Ambient Light |
| Audio | Dual microphones, speaker, vibration alert, Bluetooth headset support |
| Charging | USB-C / dedicated charging accessories |
| Typical Applications | Oil & gas, chemical, pharmaceutical, utilities, manufacturing, field service and industrial inspection |
