NG # 00400-HW-BATEC-0160

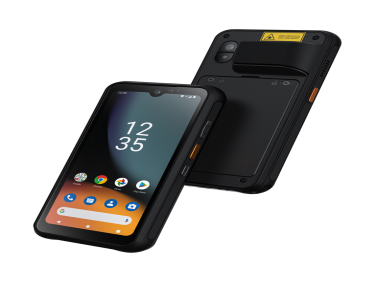

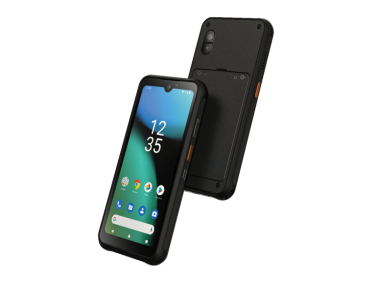

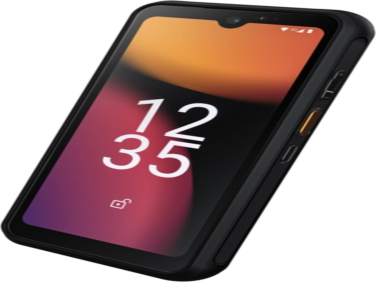

The BARTEC SC9EX1 Smartscanner is a rugged, intrinsically safe 5G smart device with an integrated professional barcode scanner, designed for data capture and communication in hazardous industrial environments. It is certified for ATEX/IECEx Zone 0/1/21 and NEC/CEC Division 1 applications, making it suitable for demanding environments where conventional mobile scanners cannot be safely used.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe SC9EX1 combines a Zebra® SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology with a 6.1-inch AMOLED touchscreen, 5G, Wi-Fi 6, NFC, GNSS and Bluetooth 5.2. Its scanner can capture barcodes from distances of up to approximately 12.2 meters, depending on barcode type, size and quality. This makes it useful for inventory management, warehouse operations, asset tracking, maintenance, inspection and field service.
The device also includes a 48 MP autofocus rear camera, 8 MP front camera, 8 GB RAM and 128 GB storage. The latest BARTEC documentation lists Android 15 with upgrade capability to Android 16, while the hardware platform is based on the Qualcomm QCM6490 octa-core processor.
| Product Type | Intrinsically Safe 5G Smartscanner |
| Part Number | 17-S19C-31111110 |
| Hazardous Area | ATEX/IECEx Zone 0/1/21; NEC/CEC Division 1 |
| ATEX Marking | II 1G Ex ia op is IIC T4 Ga; II 2D Ex ia op is IIIC T135°C Db |
| IECEx Marking | Ex ia op is IIC T4 Ga; Ex ia op is IIIC T135°C Db |
| NEC/CEC | Class I, II, III Division 1, Groups A–G, T4 |
| Processor | Qualcomm® QCM6490 Octa-Core, 2.7 GHz |
| RAM | 8 GB |
| Storage | 128 GB |
| Operating System | Android 15; upgradeable to Android 16 |
| Display | 6.1-inch AMOLED |
| Resolution | 1080 × 2340 pixels |
| Front Glass | Gorilla® Glass Victus® (8th generation) |
| Touchscreen | Capacitive; supports stylus, bare finger and gloved operation |
| Barcode Scanner | Zebra® SE55 1D/2D Advanced Range Scan Engine |
| Scanning Technology | IntelliFocus™ |
| Scanning Range | Up to approx. 12.2 m, depending on barcode |
| Supported Codes | 1D, 2D, QR, Data Matrix, PDF417, Aztec, GS1 and various postal/OCR codes |
| Rear Camera | 48 MP autofocus |
| Front Camera | 8 MP |
| Mobile Connectivity | 5G NR, LTE, UMTS, GSM |
| SIM | Dual SIM: Nano SIM + eSIM |
| Wi-Fi | Wi-Fi 6, 802.11a/b/g/n/ac/ax |
| Wi-Fi Features | 2×2 MU-MIMO, dual-band simultaneous |
| Bluetooth | Bluetooth 5.2 |
| NFC | NFC read/write, contactless payment and card emulation |
| GNSS | GPS, A-GPS, GLONASS, Galileo and BeiDou |
| Battery | 3.68 V / 4300 mAh / 15.8 Wh Li-ion |
| Protection | IP68 |
| Rugged Standard | MIL-STD-810H |
| Operating Temperature | -20°C to +55°C |
| Dimensions | 168.7 × 83.4 × 30.8 mm |
| Weight | Approx. 370 g including battery |
| I/O | USB-C and charging pins |
| Programmable Buttons | 2 function buttons for PTT, emergency call or other functions |
| Sensors | Accelerometer/Gyroscope, Magnetometer/Compass, Barometer, Proximity and Ambient Light |
| Audio | Dual microphones, speaker, vibration and Bluetooth headset support |
| Typical Applications | Inventory, asset tracking, warehouse management, inspection, maintenance, field service and industrial data collection |

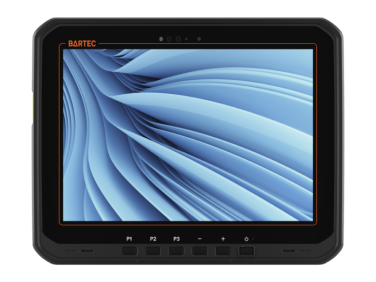

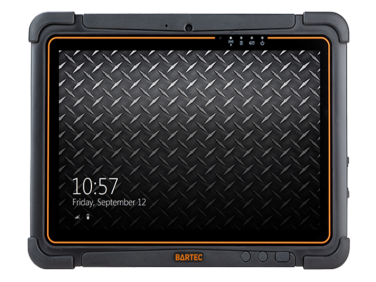

Tablet PC Agile S NI for Zone 2/22 and Class I Div 2

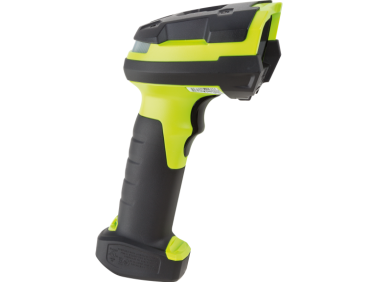

BCS3678ex-NI Hand-held scanner Bluetooth, for Zone 2/22 and Class I,II,III Div 2
BCS3608ex-NI Hand-held scanner corded, for Zone 2/22 and Class I,II,III Div 2

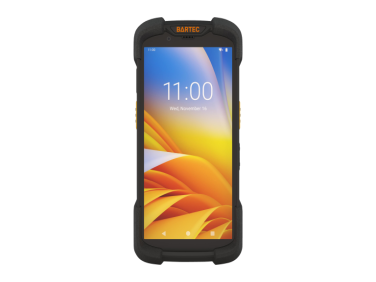

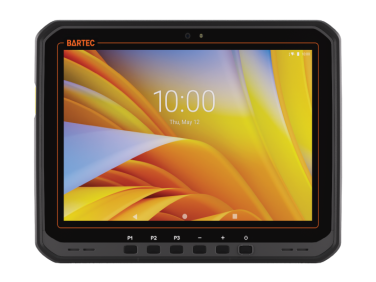

BARTEC ET60/65EX2 Android Tablet for Zone 2/22 and Class I,II,III Division 2
