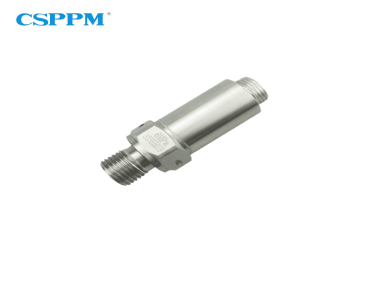

PPM-T117A SOI Oil-filled Silicon Pressure Transmitter

  • NG # 04310-HW-CSPPM-029

The PPM-T117A SOI Oil-Filled Silicon Pressure Transmitter is a high-precision industrial sensor designed for accurate pressure measurement of gases and liquids. Built with advanced SOI oil-filled silicon technology and a fully welded stainless steel structure, it delivers excellent reliability, durability, and performance in harsh environments. With strong resistance to vibration, shock, and temperature variations, it is ideal for demanding industrial and automotive applications.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T117A pressure transmitter is engineered using SOI (Silicon-On-Insulator) oil-filled sensing technology, ensuring stable and precise pressure measurement across a wide operating range. Its diaphragm isolation design enhances durability while protecting the sensing element from harsh media. The device incorporates a temperature and pressure compensation circuit, allowing it to maintain consistent accuracy even under extreme environmental conditions.

Housed in a robust stainless steel body, the transmitter is resistant to corrosion, vibration, and electromagnetic interference, making it suitable for heavy-duty industrial use. Its lightweight structure and compact design further improve installation flexibility. The sensor supports multiple output signal options, enabling seamless integration into various monitoring and control systems.

This pressure transmitter is widely used in applications such as engine pressure monitoring, fuel systems, boost pressure measurement, and industrial process control. Its long operational life, low power consumption, and high repeatability make it a reliable choice for industries requiring continuous and precise pressure monitoring.

Specification

  • Model: PPM-T117A
  • Pressure Type: Absolute pressure
  • Pressure Range: 0–2 MPa, 0–6 MPa, 0–10 MPa, 0–15 MPa
  • Measured Medium: Liquid and gas
  • Power Supply: 8–32 VDC
  • Output Signal:
    • 4–20 mA (two-wire)
    • 0.5–4.5 VDC (three-wire)
  • Accuracy:
    • ±0.2% FS (standard)
    • ±0.5% FS (optional)
  • Repeatability: ±0.1% FS
  • Non-linearity: ±0.1% FS
  • Long-term Stability: 0.15% FS/year
  • Operating Temperature (Medium & Ambient): -45°C to +120°C
  • Process Connection: G1/4, M14×1.5
  • Wetted Material: 316L stainless steel
  • Electrical Connection: Aviation connector
  • Weight: ≤50 g
  • Electromagnetic Compatibility: EN61000 standards compliant
