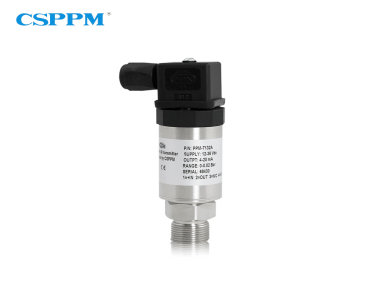

PPM-T132A 0.05%FS High Accuracy Pressure Transmitter

  • NG # 04295-HW-CSPPM-014

The PPM-T132A is a high-precision industrial pressure transmitter designed for accurate pressure measurement in harsh and interference-heavy environments. It delivers excellent stability, strong anti-electromagnetic interference capability, and reliable long-term performance, making it suitable for critical industrial applications such as oil & gas, chemical processing, power plants, and water systems.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T132A pressure transmitter is engineered for high-accuracy pressure monitoring across a wide range of industrial applications. It uses advanced MEMS sensing technology combined with imported pressure-sensitive components to ensure precise and stable readings even in demanding conditions.

Its fully sealed stainless-steel construction enhances durability and protects the sensor from environmental stress, while the integrated signal processing system improves measurement accuracy and long-term reliability. The device supports multiple pressure types, including gauge, absolute, and negative pressure, making it highly versatile for different industrial systems.

Designed with strong anti-interference capability, the PPM-T132A ensures stable operation even in environments with high electromagnetic noise. It is widely used in industries where accuracy, safety, and continuous monitoring are essential.

Specification

  • Model: PPM-T132A
  • Pressure Range: 0 to 60 MPa (wide range options available from low to high pressure)
  • Accuracy: ±0.05% FS, ±0.1% FS, ±0.2% FS options
  • Pressure Types: Gauge pressure, absolute pressure, negative pressure
  • Output Signals: 4–20mA, 0–5VDC, 1–5VDC, 0–10VDC, 0.5–4.5VDC selectable
  • Power Supply: 12–36 VDC
  • Non-linearity: ≤ ±0.04% FS
  • Repeatability: ≤ ±0.04% FS
  • Long-term Stability: ≤ ±0.1% FS per year
  • Operating Temperature: -35°C to +85°C
  • Measured Media: Gas, liquid, and steam compatible with stainless steel 316L
  • Process Connections: M20×1.5, G1/4, 1/4 NPT, 1/2 NPT and custom options
  • Electrical Connection: DIN connector, aviation connector, or direct cable outlet
  • Protection Class: IP65/IP67 (depending on configuration)
