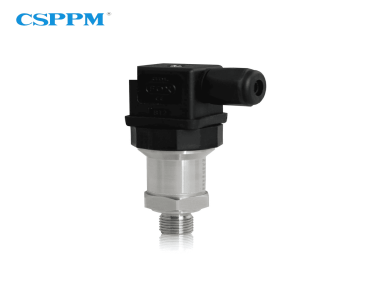

PPM-T322H 0-5V Industrial Pressure Transducer

  • NG # 04283-HW-CSPPM-002

The PPM-T322H Industrial Pressure Transducer is a high-precision, thin-film technology-based sensor designed for measuring pressure in gases, liquids, and steam. It offers reliable performance in harsh industrial environments with excellent stability, fast response time, and multiple output signal options for flexible integration.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T322H Industrial Pressure Transducer is engineered to deliver accurate and stable pressure measurement across a wide range of industrial applications. Built using advanced thin-film sensing technology, this device ensures high accuracy, strong durability, and long operational life. Its robust construction allows it to withstand extreme conditions such as pressure shocks, vibrations, and high overload situations, making it ideal for heavy-duty environments.

This transducer supports a broad pressure range and multiple output signal options, enabling seamless integration into various control and monitoring systems. It is designed for use with non-corrosive gases, liquids, and steam, and its stainless-steel compatibility ensures reliable performance in demanding industrial processes.

With excellent long-term stability, low power consumption, and fast response time, the PPM-T322H is suitable for applications such as hydraulic systems, engineering machinery, wind power systems, and industrial automation. Its ability to resist cavitation and liquid hammer effects further enhances its reliability in critical operations.

Specification

  • Measured Medium: Gas, liquid, and steam (non-corrosive to 316L stainless steel)
  • Pressure Type: Gauge pressure, sealed reference pressure
  • Pressure Range: 0–10 bar up to 1000 bar
  • Output Signals:
    • 4–20 mA
    • 0–10 VDC
    • 0–5 VDC
    • 1–5 VDC
    • 0.5–4.5 VDC
  • Power Supply: 9–32 VDC
  • Accuracy: 0.5% FS
  • Non-linearity: ≤0.25% FS (low range), ≤0.05% FS (higher range)
  • Repeatability: 0.1% FS
  • Long-term Stability: 0.15% FS/year
  • Response Time: ≤1 ms
  • Working Medium Temperature: -40°C to +125°C
  • Ambient Temperature: -40°C to +105°C
  • Insulation Resistance: ≥1000 MΩ / 100V
  • Overload Pressure: 150% FS
  • Burst Pressure: 500% FS
