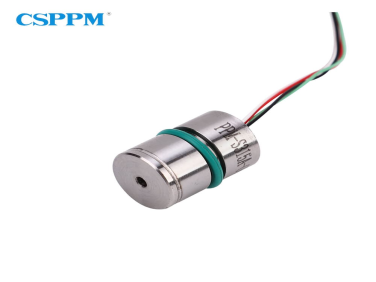

PPM-S315A 150 ℃ High Temperature Pressure Transducer

  • NG # 04298-HW-CSPPM-017

The PPM-S315A High Temperature Pressure Transducer is a compact, high-precision pressure sensing device designed for harsh industrial environments. It uses sputtered thin-film technology and stainless steel construction to deliver stable, reliable, and accurate pressure measurements under high-temperature conditions up to 150°C.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-S315A is an industrial-grade high temperature pressure sensor developed for demanding applications such as oil fields, engine testing, aerospace systems, and hydraulic equipment. It is built using advanced ion sputtering thin-film sensing technology, ensuring excellent long-term stability and resistance to pressure fatigue.

The sensor features a fully welded stainless steel structure that enhances durability and corrosion resistance. It is designed to operate reliably under extreme conditions, including high and low temperatures, pressure spikes, and continuous industrial stress.

With high accuracy up to ±0.1% FS and excellent repeatability, the PPM-S315A ensures precise measurement of gas, liquid, and steam pressure in critical systems where reliability is essential.

Specification

  • Model: PPM-S315A
  • Measured Medium: Gas, liquid, steam
  • Pressure Type: Gauge pressure / Sealed pressure / Absolute pressure
  • Pressure Range: 0 ~ 2 MPa up to 100 MPa (customizable options available)
  • Power Supply: 5–10 VDC
  • Output Signal: 1.8 ± 0.2 mV/V or 4 ± 0.5 mV/V
  • Accuracy: ±0.1% FS / ±0.25% FS
  • Repeatability: ≤0.04% FS
  • Long-term Stability: ≤ ±0.1% FS/year
  • Working Medium Temperature: -40°C to +150°C
  • Operating Temperature: -40°C to +150°C
  • Material: Stainless steel (fully welded structure)
  • Technology: Ion sputtering thin-film sensor chip
  • Features: High accuracy, anti-overload capability, temperature resistance, long service life
  • Applications: Oil drilling, well testing, aerospace engine testing, hydraulics, marine systems, industrial machinery
