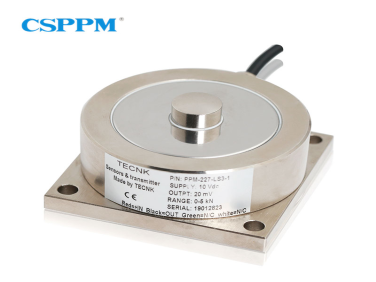

PPM227-LS3-1 Spoke Type Load Cell with Square Base

  • NG # 04300-HW-CSPPM-019

The PPM227-LS3-1 Spoke Type Load Cell with Square Base is a high-precision force measurement sensor designed for industrial weighing applications. It features a rugged stainless steel structure, excellent anti-eccentric load capability, and stable long-term performance. It is widely used in truck scales, hopper scales, belt scales, and industrial testing systems.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM227-LS3-1 is a spoke-type load cell engineered for accurate and reliable weight and force measurement in demanding industrial environments. Built with a fully sealed stainless steel body, it ensures strong resistance to harsh operating conditions, corrosion, and mechanical stress.

This load cell uses advanced strain gauge technology with temperature compensation to maintain accuracy across varying conditions. Its square base design allows for stable installation and strong load distribution, making it suitable for both static and dynamic weighing systems.

It is commonly applied in industrial automation systems such as hopper weighing, truck weighing, material testing machines, and safety monitoring equipment where precision and durability are essential.

Specification

  • Model: PPM227-LS3-1
  • Type: Spoke Type Load Cell with Square Base
  • Capacity Range: 0.3 t to 100 t
  • Rated Output: 2 mV/V
  • Accuracy Class: 0.03% FS / 0.05% FS
  • Creep Error: ±0.03% FS / 30 min
  • Zero Balance: ±1% FS
  • Safe Overload: 150% FS
  • Input Resistance: 380 ±10 Ω or 750 ±15 Ω
  • Output Resistance: 350 ±3 Ω or 700 ±5 Ω
  • Insulation Resistance: >5000 MΩ
  • Operating Temperature: -20°C to +65°C
  • Temperature Effect on Zero: ±0.03% FS / 10°C
  • Temperature Effect on Output: ±0.03% FS / 10°C
  • Excitation Voltage: 10V DC
  • Material: Stainless Steel / Alloy Steel
  • Protection Class: IP65
  • Electrical Connection: 4-wire system (Red, Black, Green, White)
