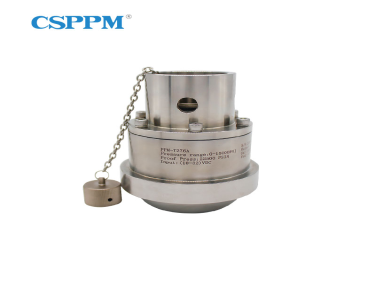

PPM-T276A“2002″Ultra-high Pressure Hammer Union Pressure Transmitter

  • NG # 04286-HW-CSPPM-005

The PPM-T276A “2002” Ultra-High Pressure Hammer Union Pressure Transmitter is a rugged, high-performance sensor designed for extreme oilfield environments. It offers reliable pressure measurement up to 25,000 psi, with high accuracy and durable stainless steel construction for use in harsh, corrosive, and high-temperature conditions.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T276A “2002” Ultra-High Pressure Hammer Union Pressure Transmitter is specifically engineered for demanding applications in onshore and offshore oil and gas operations. Built with an all-welded stainless steel structure and advanced anti-corrosion materials, the device ensures long-term durability and protection of internal electronics from abrasive and corrosive media.

This transmitter is designed to operate reliably under high pressure, shock, and vibration conditions typically found in drilling, hydraulic fracturing, and cementing processes. Its robust construction maintains structural integrity even at elevated temperatures, ensuring consistent performance in critical industrial environments. Additionally, the product is ATEX-certified, making it suitable for hazardous areas where explosion-proof equipment is required.

With fast response time, stable output signals, and high measurement accuracy, the PPM-T276A provides precise monitoring for various oilfield applications such as standpipe pressure monitoring, choke manifolds, and resource extraction systems.

Specification

  • Measuring Range: 0–15,000 psi, 20,000 psi, 25,000 psi
  • Output Signal: 4–20 mA, 0–5 VDC, 1–5 VDC, 0–10 VDC, mV
  • Power Supply: 9–36 VDC, 5–12 VDC
  • Accuracy: 0.5% FS
  • Repeatability: 0.05% FS
  • Non-Linearity: 0.10% FS/°C
  • Long-Term Stability: 0.1% FS/year
  • Operating Temperature: -40°C to 80°C
  • Ambient Temperature: -40°C to 80°C
  • Response Time: ≤1 ms
  • Overload Pressure: 150% FS
  • Rupture Pressure: 500% FS
  • Insulation Resistance: ≥500 MΩ / 100 VDC
  • Wetted Material: 17-4PH stainless steel
  • Protection Rating: IP67
  • Explosion Protection: Ex ib IIC T4 Gb (ATEX certified)
  • Electrical Connection: Aviation connector or direct cable
  • Pressure Connection: Chuck type seal or customized
  • Relative Humidity: 0–100% RH
