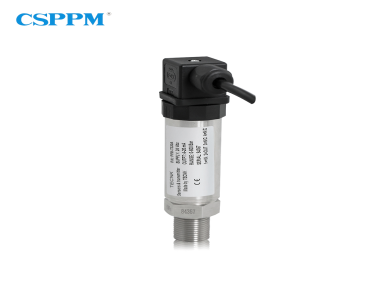

PPM-T330A℃ Temperature and Pressure Transmitter

  • NG # 04290-HW-CSPPM-009

The PPM-T330A℃ Temperature and Pressure Transmitter is a high-performance industrial sensor designed to measure both pressure and temperature simultaneously in gas, liquid, and steam applications. It features a rugged stainless-steel construction, wide measurement range, and reliable 4–20mA output, making it suitable for harsh industrial environments.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T330A℃ is an advanced dual-function transmitter developed for precise pressure and temperature monitoring in demanding industrial systems. It uses high-sensitivity sputtered film sensor technology and a fully welded stainless-steel housing to ensure durability, stability, and resistance against vibration, shock, and extreme environmental conditions.

This transmitter supports a wide pressure range up to 300MPa and a temperature range up to 150°C, making it ideal for applications such as hydraulic systems, energy management, oilfield equipment, steam systems, and heavy machinery. Its integrated design allows simultaneous measurement of pressure and temperature, reducing installation complexity while improving system efficiency and reliability.

Specification

  • Measured Medium: Gas, liquid, steam
  • Pressure Range: 0 to 0.6 MPa up to 300 MPa (customizable)
  • Temperature Range: 0°C to 150°C
  • Pressure Output Signal: 4–20 mA
  • Temperature Output Signal: PT100
  • Power Supply: 24 VDC
  • Pressure Type: Gauge / Absolute / Sealed reference (customizable)
  • Accuracy:±0.5% FS (optional higher accuracy available)
  • Wetted Material: Stainless steel
  • Mounting Thread Options: M20×1.5, M14×1.5, G1/4, 1/4 NPT, 1/2 NPT
  • Electrical Interface: Hirschmann connector or direct cable output
  • Operating Temperature (Medium): -45°C to +80°C (custom up to higher ranges)
  • Features:
    • High sensitivity and fast response
    • Shock and vibration resistance
    • Low power consumption
    • High stability and long service life
    • Fully customizable configurations
