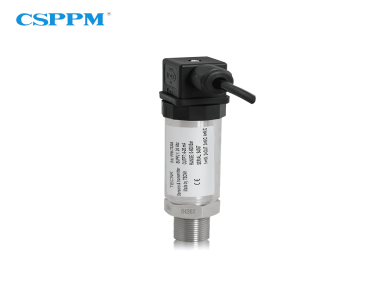

PPM-T330A Sputtered Film High Temperature Pressure Transmitter

  • NG # 04296-HW-CSPPM-015

The PPM-T330A Sputtered Film High Temperature Pressure Transmitter is a high-precision industrial sensor designed for extreme environments. It uses advanced sputtered thin-film technology to deliver stable, accurate pressure measurement for gas, liquid, and steam applications. The device is widely used in heavy-duty industries such as energy, hydraulics, engines, and oilfield systems.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T330A is an industrial-grade pressure transmitter developed for demanding high-temperature and high-pressure applications. It features an all-stainless-steel welded construction with ion beam sputtered film sensing technology, ensuring strong durability, excellent corrosion resistance, and long-term stability.

This transmitter is designed to perform reliably under harsh conditions such as vibration, pressure shocks, and wide temperature fluctuations. It supports multiple pressure ranges and output signal options, making it highly flexible for different industrial systems.

It is commonly applied in diesel engines, steam turbines, hydraulic systems, oilfield equipment, and industrial test systems where accurate and stable pressure measurement is critical.

Specification

General Specifications

  • Measured media: Gas, liquid, steam
  • Pressure range: 0 to 300 MPa (customizable range available)
  • Pressure type: Gauge, absolute, sealed reference (customizable)
  • Accuracy: Up to ±0.1% FS (options vary by configuration)
  • Long-term stability: 0.1% FS/year

Electrical Specifications

  • Power supply: 9–32 VDC (24 VDC typical)
  • Output signals:
    • 4–20 mA
    • 0–5 VDC
    • 1–5 VDC
    • 0–10 VDC
    • 0.5–4.5 VDC

Temperature Specifications

  • Working medium temperature: -45°C to +145°C (up to 250°C customized)
  • Ambient temperature: -55°C to +145°C

Mechanical & Design

  • Sensor technology: Ion beam sputtered thin-film
  • Structure: Fully welded stainless steel housing
  • Overload resistance: Up to 5× pressure overload
  • Electrical interface: Hirschmann connector / cable outlet / aviation plug
  • Process connections: M20×1.5, G1/4, 1/4 NPT, 1/2 NPT, etc.

Performance Features

  • High accuracy and repeatability
  • Excellent vibration and shock resistance
  • No hysteresis and low drift
  • Strong anti-interference and EMC performance
  • Suitable for extreme industrial environments

Applications

  • Diesel and combustion engines
  • Steam and water turbines
  • Hydraulic machinery and systems
  • Oilfield drilling and downhole tools
  • Energy management systems
  • Testing and calibration equipment
  • Industrial automation and process control
