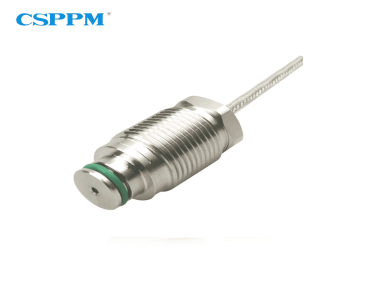

PPM-T320A 150 ℃ High Temperature Steam Pressure Transmitter

  • NG # 04294-HW-CSPPM-013

The PPM-T320A is a high-performance industrial pressure transmitter designed for accurate measurement of liquid, gas, and steam in high-temperature environments up to 150°C. It uses advanced sputtered film sensor technology to ensure high stability, precision, and long-term reliability in harsh industrial applications such as drilling, logging, and oilfield systems.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T320A High Temperature Pressure Transmitter is engineered for demanding industrial and energy sector applications where stable and accurate pressure monitoring is critical. It integrates a highly reliable ion beam sputtered thin-film sensing element with a specially designed amplifier circuit, ensuring excellent resistance to radio frequency interference and lightning surges.

The sensor structure is fully welded using laser sealing technology, which enhances durability under extreme pressure cycles, vibration, and temperature fluctuations. It also undergoes high and low temperature aging and compensation processes to ensure consistent long-term performance.

This transmitter is widely used in oil and gas operations, drilling systems, well testing, water injection systems, and downhole instrumentation where reliability under extreme environmental conditions is essential.

Specification

  • Model: PPM-T320A
  • Measured Medium: Liquid, gas, and steam
  • Pressure Type: Gauge pressure (G)
  • Pressure Range: 0 to 1MPa up to 200MPa (various options available)
  • Output Signal: 0.5 to 4.5VDC (custom output available)
  • Power Supply: 5VDC
  • Working Medium Temperature: -40°C to 150°C
  • Ambient Temperature: -40°C to 145°C
  • Accuracy: ±0.25% FS
  • Repeatability: 0.05% FS
  • Long-term Stability: ≤0.15% FS per year
  • Process Connection: M20 × 1.5
  • Electrical Connection: Cable output
  • Sensor Technology: Ion beam sputtered thin-film pressure core
  • Sealing Method: Laser welded stainless steel housing
  • Protection Features: Anti-RF interference and lightning protection
