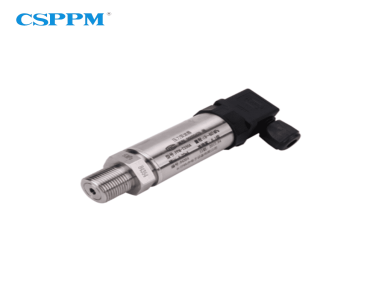

PPM-T330D -196 ℃ Ultra-low Temperature Pressure Transmitter

  • NG # 04288-HW-CSPPM-007

The PPM-T330D Ultra-Low Temperature Pressure Transmitter is a high-performance industrial sensor designed for precise pressure measurement in extreme cryogenic environments. Built with a stainless steel integrated structure and a specially engineered diaphragm, it operates reliably at temperatures as low as −196°C, delivering high accuracy, fast response, and long-term stability for demanding applications.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T330D Ultra-Low Temperature Pressure Transmitter is specifically engineered for applications where conventional pressure sensors fail due to extreme cold conditions. Featuring a robust stainless steel construction and an advanced pressure-sensitive diaphragm, this transmitter ensures stable and accurate performance even in environments reaching −196°C. Its compact design, high sensitivity, and strong resistance to corrosion make it suitable for handling cryogenic media such as liquid nitrogen, liquid oxygen, hydrogen, and helium.

With a wide pressure measurement range and multiple output signal options, the device provides flexibility for integration into various industrial systems. It is widely used in scientific research, aerospace systems, cryogenic storage tanks, and low-temperature process control applications. The transmitter is also designed for durability, offering excellent long-term stability and reliability, even under continuous operation in harsh conditions. Additionally, customization options are available to meet specific installation and operational requirements, making it a versatile solution for specialized industries.

Specification

  • Measured Medium: Liquid, gas, and steam
  • Pressure Type: Gauge / sealed reference pressure
  • Pressure Range: 0 ~ 0.1 bar to 2000 bar
  • Power Supply: 9 ~ 36 VDC
  • Output Signal: 4–20 mA, 0–10 VDC, 0–5 VDC, 0.5–4.5 VDC
  • Accuracy: ±0.1% FS, ±0.25% FS, ±0.5% FS (optional)
  • Non-linearity: ≤ 0.2% FS
  • Repeatability: 0.25% FS
  • Long-term Stability: 0.25% FS/year
  • Working Medium Temperature: −196°C to +75°C
  • Ambient Temperature: −40°C to +75°C
  • Mounting Thread: M20×1.5, G1/2, 1/2NPT, 1/4NPT, G1/4 (customizable)
  • Electrical Interface: Hirschmann connector or direct cable output
