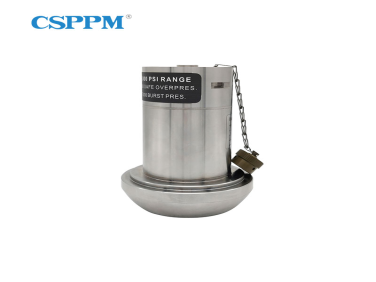

PPM-T293F 1502 Hammer Union Pressure Transducer

  • NG # 04285-HW-CSPPM-004

The PPM-T293F 1502 Hammer Union Pressure Transducer is a high-performance pressure measurement device designed specifically for demanding oilfield applications. It features a robust hammer union connection for secure installation, wide pressure ranges up to 20,000 psi, and multiple output signal options. Engineered for durability, accuracy, and fast response, it ensures reliable pressure monitoring in harsh environments such as drilling, fracturing, and cementing operations.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T293F 1502 Hammer Union Pressure Transducer is purpose-built to meet the extreme requirements of oil and gas field operations, where high pressure, vibration, and harsh environmental conditions are common. This transducer integrates a rugged hammer union fitting, allowing quick and secure installation into high-pressure systems such as wellheads, choke manifolds, and fracturing equipment.

Designed with advanced sensing technology, the device converts pressure into stable electrical signals such as 4–20mA or voltage outputs, enabling seamless integration with monitoring and control systems. Its wide measurement range, extending from 0–5000 psi up to 0–20000 psi, makes it suitable for various high-pressure applications. The sensor delivers high accuracy and excellent repeatability, ensuring consistent performance over time.

In addition, the transducer is built using high-strength stainless steel materials, providing strong resistance to corrosion, shock, and vibration. With fast response time and long-term stability, it supports real-time monitoring in critical operations like hydraulic fracturing, cementing, and drilling. The product is also certified for explosion-proof environments, making it safe and reliable for hazardous industrial settings.

Specification

  • Measuring Range: 0–5000 psi, 6000 psi, 0–10000 psi, 0–15000 psi, 0–20000 psi
  • Output Signal: 4–20 mA, 0–5 VDC, 1–5 VDC, 0–10 VDC, mV
  • Power Supply: 9–36 VDC, 5–12 VDC
  • Accuracy: ±0.25% FS, ±0.5% FS
  • Non-Linearity: 0.10% FS/°C
  • Repeatability: 0.05% FS
  • Long-Term Stability: ±0.1% FS/year
  • Response Time: ≤1 ms
  • Operating Temperature (Medium & Ambient): -40°C to 80°C
  • Insulation Resistance: ≥500 MΩ / 100 VDC
  • Overload Pressure: 150% FS
  • Rupture Pressure: 500% FS
  • Shock Resistance: ~10 g (0–2000 Hz)
  • Impact Resistance: ~50 g / 1 ms
  • Wetted Material: 17-4PH stainless steel
  • Protection Rating: IP67
  • Explosion-Proof Rating: Ex ib IIC T4 Gb (ATEX certified)
  • Relative Humidity: 0–100% RH
  • Electrical Connection: Aviation connector or cable output
  • Process Connection: Hammer union (1502 type)
  • Applicable Media: Oil, gas, corrosive liquids, and wet soil
