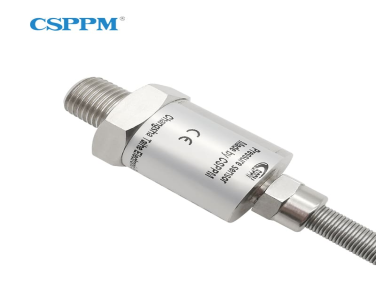

PPM-T6103A LNG Special Pressure Transmitter

  • NG # 04293-HW-CSPPM-012

The PPM-T6103A LNG Special Pressure Transmitter is a high-performance industrial pressure sensing device designed for accurate measurement of low-temperature liquefied gases such as LNG, CNG, and LPG. It features a micro fused pressure sensor and advanced digital signal processing circuit, ensuring stable and precise pressure output even in extreme cryogenic conditions down to -196°C. This transmitter is engineered for gas control systems, fuel vehicles, and liquefied gas storage and transportation applications, offering long-term reliability, anti-interference capability, and excellent durability in harsh industrial environments

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T6103A is specially developed for LNG and other liquefied gas pressure monitoring applications where high accuracy and extreme environmental resistance are required. It uses a 17-4PH stainless steel integrated diaphragm structure that eliminates weld seams and improves sealing performance, reducing the risk of leakage and contamination.

The sensor incorporates temperature compensation, noise filtering, and anti-vibration design to ensure stable operation under fluctuating temperature and pressure conditions. Its solid-sintered sensing element enhances resistance to shock, corrosion, and hydrogen brittleness, making it suitable for long-term industrial use.

Typical applications include LNG/CNG pressure measurement, gas control systems, fuel vehicle systems, and liquefied gas carrier monitoring, where safety and precision are critical.

Specification

  • Model: PPM-T6103A
  • Type: LNG Special Pressure Transmitter
  • Measurement Medium: LNG, CNG, LPG, gas media
  • Pressure Range: Up to approx. 0–4 MPa (varies by configuration)
  • Accuracy: ±0.25% FS (combined non-linearity, hysteresis, repeatability)
  • Comprehensive Accuracy: ±1% FS
  • Operating Temperature (Compensated): -20°C to +85°C
  • Extreme Medium Temperature Capability: Down to -196°C
  • Output Signal: Standard industrial analog output (commonly 4–20 mA or voltage options depending on configuration)
  • Pressure Overload Capacity: 3× rated pressure
  • Burst Pressure: 5× rated pressure
  • Long-term Stability: ±0.25% FS/year
  • Pressure Cycle Life: Up to 10 million cycles
  • Isolation Resistance: 50 MΩ (250V DC)
  • Material: 17-4PH stainless steel body with integrated diaphragm
  • Protection Features: Anti-corrosion, anti-vibration, anti-interference, hydrogen resistance
  • Applications: LNG storage systems, CNG fuel systems, gas pipelines, industrial automation, liquefied gas transport systems
