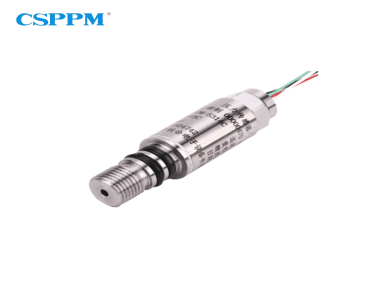

PPM-S312A 150℃ Oil Well High Temperature Pressure Sensor

  • NG # 04289-HW-CSPPM-008

The PPM-S312A Oil Well High Temperature Pressure Sensor is a high-precision industrial sensor designed for extreme environments such as oilfield drilling and downhole applications. Built with advanced thin-film sputtering technology and a fully welded stainless steel structure, it delivers reliable pressure measurement under high temperature, high pressure, and harsh operating conditions.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-S312A oil well high temperature pressure sensor is engineered to deliver accurate and stable pressure measurements in demanding industrial environments, particularly within oil and gas operations. Utilizing ion sputtering thin-film technology, the sensor ensures excellent sensitivity and long-term reliability even under continuous exposure to extreme temperatures and pressures. Its robust stainless steel construction, combined with laser welding sealing, enhances durability and prevents leakage, making it ideal for downhole and high-stress applications.

This sensor is specifically designed to perform in challenging conditions such as oil drilling, well testing, and hydraulic systems where consistent and precise readings are critical. With high resistance to temperature fluctuations, vibration, and overload conditions, it maintains performance stability over extended operational periods. The compact design allows for easy installation in confined spaces, while customizable configurations enable adaptability to various industrial requirements. Overall, the PPM-S312A provides a dependable solution for industries that demand high accuracy, durability, and performance in harsh environments.

Specification

  • Model: PPM-S312A
  • Measuring Medium: Gas, liquid, steam
  • Pressure Range: 0–10 MPa up to 200 MPa (customizable ranges available)
  • Pressure Type: Gauge / sealed pressure
  • Accuracy: ±0.1% FS, ±0.25% FS
  • Repeatability: ≤0.05% FS
  • Output Signal: 1.8 mV/V to 5 mV/V
  • Power Supply: 5–10 VDC
  • Long-term Stability: ≤ ±0.1% FS/year
  • Operating Temperature: -40°C to +150°C (higher options available depending on configuration)
  • Temperature Compensation: Full temperature compensation for zero and span
  • Response Time: ≤1 ms
  • Overpressure Capacity: Up to 200% FS
  • Construction Material: Stainless steel (fully welded structure)
  • Sealing Method: Laser welding with double sealing structure
  • Mounting Thread: M10 × 1 (custom options available)
  • Ingress Protection: IP65
  • Electrical Connection: Direct cable output
  • Weight: Approx. 0.2 kg
