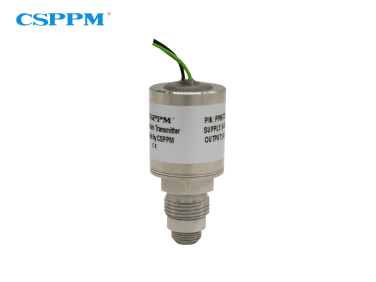

PPM-T322C 150 ℃ High Temperature Pressure Transmitter

  • NG # 04305-HW-CSPPM-024

The PPM-T322C is a high-temperature industrial pressure transmitter designed for accurate and stable measurement of gases, liquids, and steam in extreme environments up to 150°C. It uses advanced sputtered thin-film technology to ensure long-term reliability, high precision, and excellent resistance to harsh operating conditions.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T322C High Temperature Pressure Transmitter is engineered for demanding industrial applications where both high temperature and high pressure performance are required. It features a stainless steel elastic diaphragm with ion sputtering thin-film sensing technology, eliminating the need for adhesive-based sensing elements. This design significantly improves long-term stability by reducing issues such as creep, hysteresis, and aging.

The sensor is suitable for a wide pressure range and delivers highly accurate readings even in aggressive or unstable environments. Its robust construction and high-temperature resistance make it ideal for oil and gas operations, hydraulic systems, downhole instruments, and other heavy industrial applications where reliability is critical.

Specification

  • Model: PPM-T322C
  • Measured Medium: Gases, liquids, and steam
  • Pressure Type: Gauge pressure (ventilation gauge pressure)
  • Pressure Range: 0 ~ 2 MPa up to 200 MPa (customizable ranges available)
  • Output Signal: 0.05–1.25 VDC / 0.5–4.5 VDC
  • Power Supply: 3.3 VDC / 5 VDC
  • Accuracy: ±0.2% FS
  • Repeatability: 0.05% FS
  • Long-term Stability: ≤ ±0.1% FS per year
  • Working Medium Temperature: -40°C to +150°C
  • Operating Environment Temperature: -40°C to +145°C
  • Mounting Thread: 3/8-24 UNF flexible thread conical seal
  • Electrical Connection: Direct cable outlet
  • Sensing Technology: Ion sputtering thin-film on stainless steel diaphragm
  • Key Feature: Excellent resistance to creep, hysteresis, and long-term drift

Typical Applications

  • Oil drilling and logging
  • Downhole pressure measurement
  • Well testing systems
  • Hydraulic and pneumatic systems
  • Submersible pumps
  • Aircraft and industrial pressure systems
