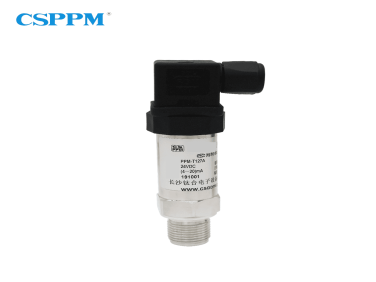

PPM-T127A High Frequency Dynamic Pressure Transmitter

  • NG # 04303-HW-CSPPM-022

The PPM-T127A High Frequency Dynamic Pressure Transmitter is a precision sensor designed for fast-changing pressure measurement in both gas and liquid media. It features ultra-high frequency response up to 400 kHz, rapid reaction time, and high accuracy of up to 0.2% FS, making it suitable for dynamic testing, industrial experiments, and harsh measurement environments.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T127A is an advanced dynamic pressure transmitter developed for applications where rapid pressure fluctuations must be accurately captured. It uses a flat film sensing structure that enables extremely fast response and reliable performance under high-frequency conditions.

In addition to dynamic pressure measurement, it can also measure static pressure with high precision. The device supports a wide pressure range and is compatible with multiple output signals, ensuring flexibility for different industrial systems and data acquisition setups.

With strong stability, anti-interference capability, and industrial-grade durability, the PPM-T127A is widely used in research labs, hydraulic systems, engine testing, and energy field applications where accurate transient pressure monitoring is critical.

Specification

  • Model: PPM-T127A
  • Measured Medium: Gas, Liquid
  • Pressure Type: Gauge / Absolute / Sealed pressure
  • Pressure Range: -100 kPa to 100 MPa (wide selectable range)
  • Accuracy: ±0.2% FS (optional 0.5% FS)
  • Output Signals: 4–20 mA / 1–5 VDC / 0–5 VDC
  • Supply Voltage: 24 VDC
  • Response Frequency: Up to 400 kHz
  • Response Time: ≤ 0.1 ms
  • Non-linearity: ±0.2% FS / ±0.5% FS
  • Repeatability: 0.05% FS
  • Long-term Stability: 0.1% FS/year
  • Operating Temperature: -40°C to 85°C
  • Overpressure Capacity: 150% FS
  • Burst Pressure: 300% FS
  • Insulation Resistance: ≥ 500 MΩ (50V)
  • Protection Rating: IP65
  • Electrical Connection: Cable outlet
  • Process Connection: M20×1.5 (or customized)
