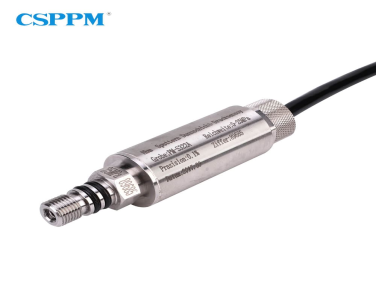

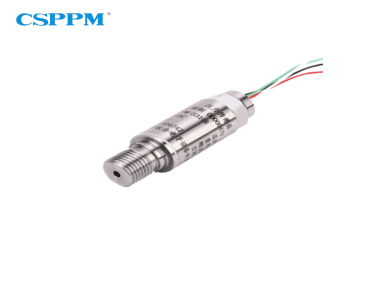

PPM-S322A Loader Weighing System Pressure Sensor

  • NG # 04287-HW-CSPPM-006

The PPM-S322A Loader Weighing System Pressure Sensor is a high-precision industrial transducer designed for accurate pressure and temperature measurement in heavy-duty machinery. Engineered with advanced thin-film sputtering technology, it delivers excellent stability, durability, and accuracy, making it ideal for loader weighing systems, forklifts, and construction equipment.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-S322A pressure sensor is specifically developed for loader weighing systems where precision and reliability are critical. It integrates pressure and temperature measurement capabilities into a single compact unit, enabling efficient monitoring and improved operational accuracy. Built using thin-film sputtering technology, the sensor undergoes strict temperature compensation for both zero and span, ensuring consistent performance even in demanding environments.

This sensor is designed to withstand harsh industrial conditions, including strong vibrations, pressure spikes, and extreme temperatures. Its high accuracy of up to 0.1% full scale ensures precise data collection, which is essential for load measurement and safety in construction and material handling operations.

With multiple process and electrical connection options, the PPM-S322A offers flexibility in installation and integration. Its robust stainless steel construction enhances durability, while its high long-term stability minimizes maintenance requirements. Overall, it is a reliable solution for applications such as loader weighing systems, forklift scales, and truck cranes, where consistent and accurate pressure monitoring is essential.

Specification

  • Measuring Medium: Gas, liquid, steam
  • Pressure Type: Gauge (G), Sealed (S), Absolute (A)
  • Pressure Range: 0–16 MPa to 100 MPa
  • Power Supply: 5VDC (3–12VDC)
  • Pressure Output Signal: 0–10 mV (0–20 mV at 10VDC)
  • Temperature Output Signal: 18B20
  • Accuracy: 0.1% FS, 0.2% FS
  • Non-linearity: ≤0.04% FS
  • Non-repeatability: ≤0.02% FS
  • Long-term Stability: 0.1% FS/year
  • Medium Temperature: -40°C to 125°C
  • Operating Temperature: -40°C to +125°C
  • Zero Temperature Drift: ≤0.005%FS/°C, ≤0.01%FS/°C
  • Full Scale Temperature Drift: ≤0.008%FS/°C, ≤0.015%FS/°C
  • Response Time: ≤0.8 ms (10%–90%)
  • Output Impedance: 1500Ω / 3300Ω / 5500Ω
  • Insulation Resistance: ≥500 MΩ/100V
  • Over Pressure: 200% FS
  • Damage Pressure: 500% FS
  • Vibration Resistance: 5–1000 Hz
  • Shock Resistance: 50g, 20 ms
  • Process Connection: M20×1.5, M16×1.5, M14×1.5, M10×1, G1/4 (customizable)
  • Materials:
    • Wetted Parts: 17-4PH, 15-5PH
    • Non-wetted Parts: Stainless Steel 316
  • Ingress Protection: IP65, IP67, IP68
  • Electrical Connection: M12×1 connector or cable outlet
