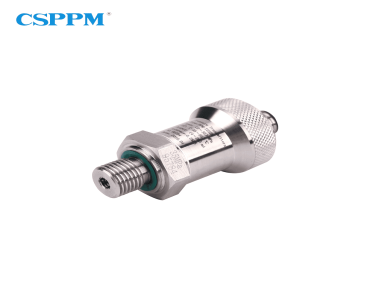

PPM-T222H Economic Industrial Pressure transmitter

  • NG # 04311-HW-CSPPM-030

The PPM-T222H Economic Industrial Pressure Transmitter is a cost-effective and reliable solution designed for accurate pressure measurement in demanding industrial environments. Built with robust strain gauge technology, it ensures stable performance under high pressure, vibration, and shock conditions. Suitable for measuring gas, liquid, and steam, this transmitter offers multiple output signals and wide pressure ranges, making it ideal for various industrial automation and hydraulic applications.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T222H Economic Industrial Pressure Transmitter is engineered to deliver consistent and accurate pressure monitoring across a wide range of industrial applications. Utilizing advanced strain gauge technology, the device features an integrated structure that enhances durability and allows it to withstand extreme conditions such as pressure shocks, vibration, and high overload situations. Its strong resistance to cavitation and liquid hammer effects makes it particularly suitable for heavy-duty environments where reliability is critical.

This pressure transmitter supports measurement of non-corrosive gases, liquids, and steam, offering flexibility across multiple industries including hydraulic systems, engineering machinery, and industrial automation. With multiple output signal options such as 4–20mA and voltage outputs, it easily integrates with different control systems. The device is designed for long-term stability and accuracy, minimizing maintenance requirements and ensuring consistent performance over time. Its rugged stainless steel construction and high protection rating further enhance its suitability for harsh industrial conditions.

Specification

  • Measured Medium: Gas, liquid, and steam (non-corrosive to stainless steel)
  • Pressure Type: Gauge pressure, sealed reference pressure
  • Pressure Range: 0–160 bar up to 1000 bar
  • Accuracy: ±0.5% FS
  • Non-linearity: ≤0.2% FS
  • Repeatability: 0.2% FS
  • Long-term Stability: 0.25% FS/year
  • Power Supply: 9–32 VDC
  • Output Signals: 4–20 mA, 0–10 VDC, 0–5 VDC, 1–5 VDC, 0.5–4.5 VDC
  • Medium Temperature: -40°C to +85°C
  • Ambient Temperature: -40°C to +75°C
  • Zero Temperature Drift: ≤0.03% FS/°C
  • Overload Pressure: 150% FS
  • Burst Pressure: 500% FS
  • Process Connection: G1/4, M14×1.5 or customized
  • Wetted Material: 17-4PH stainless steel diaphragm, 304 stainless steel housing
  • Protection Class: IP67
  • Electrical Connection: M12 connector or DIN43650 connector
