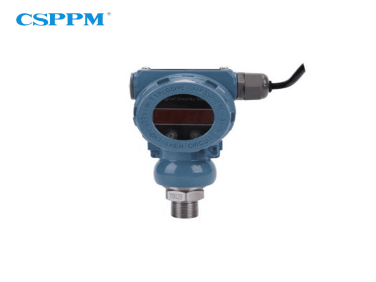

PPM-T132C Piezoresistive Pressure Transmitter

  • NG # 04306-HW-CSPPM-025

The PPM-T132C is a high-accuracy piezoresistive pressure transmitter designed for industrial applications. It converts pressure of gas, liquid, or steam into a standard electrical signal with excellent stability, long service life, and strong resistance to temperature variations.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T132C piezoresistive pressure transmitter uses a silicon-based sensing element to measure pressure and convert it into a linear electrical output signal. The device applies advanced laser-trimmed compensation technology to improve zero stability and temperature performance, ensuring reliable operation in harsh industrial environments.

It is suitable for measuring gauge or sealed reference pressure in a wide range of applications such as petroleum, chemical processing, water treatment, metallurgy, power plants, and environmental monitoring. The transmitter supports multiple output signal options and customizable process connections, making it flexible for various installation requirements.

With its robust construction and high precision, the PPM-T132C is widely used in industrial automation systems where accurate and stable pressure measurement is critical.

Specification

  • Model: PPM-T132C
  • Technology: Piezoresistive silicon pressure sensing
  • Measured Media: Gas, liquid, steam
  • Pressure Type: Gauge pressure / sealed reference pressure (customizable)
  • Pressure Range: 0 to 0.1 bar up to 600 bar
  • Power Supply: 9 – 36 VDC
  • Output Signals: 4–20 mA / 0–10 V / 0–5 V / 0.5–4.5 V (optional)
  • Accuracy: ±0.2% FS / ±0.5% FS
  • Non-linearity: ≤ 0.2% FS
  • Repeatability: ≤ 0.2% FS
  • Long-term Stability: ≤ 0.25% FS per year
  • Operating Temperature (Medium): -40°C to +85°C
  • Operating Temperature (Environment): -40°C to +75°C
  • Process Connection: M20×1.5, G1/2, 1/2NPT, 1/4NPT (customizable)
  • Electrical Connection: M20×1.5
  • Construction Feature: Laser-trimmed compensation for zero and temperature stability
