PPM-S230A 0.25%FS Strain Gauge Pressure Sensor

  • NG # 04292-HW-CSPPM-011

The PPM-S230A is a high-precision strain gauge pressure sensor designed for industrial applications. It offers a wide measurement range up to 200MPa, excellent long-term stability, and reliable performance in harsh environments such as hydraulic systems, testing machines, and industrial automation.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-S230A strain gauge pressure sensor is engineered for general and heavy-duty industrial pressure measurement applications. It utilizes advanced strain gauge technology to convert pressure into an electrical signal with high accuracy and stability.

This sensor supports both gas and liquid media and is available in gauge and sealed pressure types. With a broad measuring range from 0 to 200MPa, it is suitable for high-pressure environments such as hydraulic systems, engine testing, brake systems, and water supply systems.

The device is designed with strong resistance to vibration, impact, and overpressure conditions, ensuring dependable operation even in demanding industrial environments. It also provides excellent long-term stability and repeatability, making it ideal for continuous monitoring applications.

Specification

  • Model: PPM-S230A
  • Sensor Type: Strain Gauge Pressure Sensor
  • Measuring Medium: Gas, liquid
  • Pressure Type: Gauge pressure (G), Sealed pressure (S)
  • Pressure Range: 0 ~ 1 MPa to 200 MPa
  • Power Supply: 3–15 VDC (5 VDC recommended)
  • Output Signal: 1.5 mV/V, 2.0 mV/V, 3.3 mV/V
  • (0–7.5 mV, 0–10 mV, 0–15 mV at 5 VDC supply)
  • Accuracy: ±0.25% FS / ±0.5% FS
  • Nonlinearity: 0.05%, 0.06%, 0.08%
  • Repeatability: 0.1% FS
  • Creep: 0.03% FS
  • Long-term Stability: 0.2% FS/year
  • Operating Temperature: -25°C to +85°C
  • Zero Temp Drift: ±0.02% FS/°C
  • Full Scale Temp Drift: ±0.03% FS/°C
  • Response Time: 1 ms
  • Overpressure Limit: 150% FS
  • Burst Pressure: 500% FS
  • Vibration Resistance: <0.1% FS (5–1000 Hz)
  • Shock Resistance: 50g
  • Ingress Protection: IP67
  • Process Connection: M20×1.5, M16×1.5, M14×1.5, M10×1, G1/4 (or custom)
  • Wetted Material: Stainless steel (17-4PH, 1Cr18Ni9Ti)
  • Electrical Connection: Cable type

Other csppm sensor Products

PPM-S312A 150℃ Oil Well High Temperature Pressure Sensor
csppm sensor Industrial Tools & Accessories 04289-HW-CSPPM-008

PPM-T322C 150 ℃ High Temperature Pressure Transmitter
csppm sensor Industrial Tools & Accessories 04305-HW-CSPPM-024

PPM-S316B -196 ℃ Ultra-Low Temperature Pressure Sensor
csppm sensor Industrial Tools & Accessories 04299-HW-CSPPM-018

PPM-T232H Metal Strain Pressure Transmitter
csppm sensor Industrial Tools & Accessories 04304-HW-CSPPM-023

PPM-T293A 1502 Hammer Union Pressure Sensor
csppm sensor Industrial Tools & Accessories 04284-HW-CSPPM-003

PPM-T330A℃ Temperature and Pressure Transmitter
csppm sensor Industrial Tools & Accessories 04290-HW-CSPPM-009

PPM-S322A Loader Weighing System Pressure Sensor
csppm sensor Industrial Tools & Accessories 04287-HW-CSPPM-006

PPM-T293F 1502 Hammer Union Pressure Transducer
csppm sensor Industrial Tools & Accessories 04285-HW-CSPPM-004

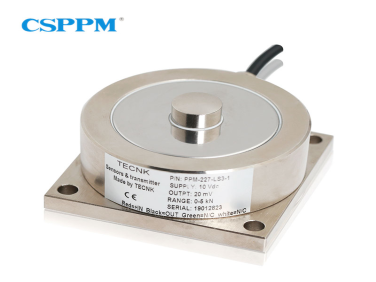

PPM227-LS3-1 Spoke Type Load Cell with Square Base
