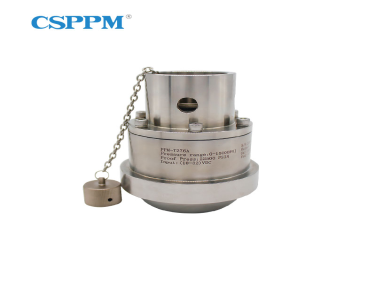

PPM-T293A 1502 Hammer Union Pressure Sensor

  • NG # 04284-HW-CSPPM-003

The PPM-T293A Hammer Union Pressure Sensor is a high-performance pressure measurement device designed for demanding oilfield applications. Built with rugged stainless steel construction and advanced sensing technology, it delivers accurate and stable pressure readings in extreme environments such as drilling, fracturing, and cementing operations.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T293A Hammer Union Pressure Sensor is specifically engineered to operate reliably in harsh oil and gas industry conditions, where high pressure, vibration, and corrosive media are common. Designed with a 1502 hammer union connection, it ensures secure installation and compatibility with standard oilfield equipment.

Constructed from durable stainless steel materials, the sensor provides excellent resistance against corrosion, acids, and saline environments, making it suitable for long-term use in aggressive media. Its advanced design delivers high accuracy and long-term stability, ensuring consistent performance even under continuous pressure cycles and heavy mechanical stress.

The sensor supports multiple output signals, allowing easy integration into different monitoring and control systems. With fast response time and strong resistance to shock and vibration, it is ideal for real-time pressure monitoring in critical operations such as hydraulic fracturing, choke manifolds, and wellhead systems. Additionally, the device is explosion-proof certified, ensuring safe operation in hazardous environments.

Specification

  • Pressure Range: 0–5000 psi up to 0–20,000 psi
  • Output Signal: 4–20 mA, 0–5 VDC, 1–5 VDC, 0–10 VDC, mV
  • Accuracy: ±0.25% FS (±0.5% optional)
  • Power Supply: 9–36 VDC or 5–12 VDC
  • Operating Temperature: -40°C to 80°C
  • Repeatability: 0.05% FS
  • Non-Linearity: 0.10% FS
  • Long-Term Stability: ±0.1% FS/year
  • Response Time: ≤1 ms
  • Overload Pressure: 150% FS
  • Rupture Pressure: 500% FS
  • Shock Resistance: Up to 50 g
  • Vibration Resistance: Up to 10 g
  • Wetted Material: 17-4PH / 316L stainless steel
  • Protection Rating: IP67
  • Explosion Protection: Ex ib IIC T4 Gb (ATEX certified)
  • Humidity Range: 0–100% RH
  • Measured Media: Oil, gas, wet soil, and corrosive liquids
