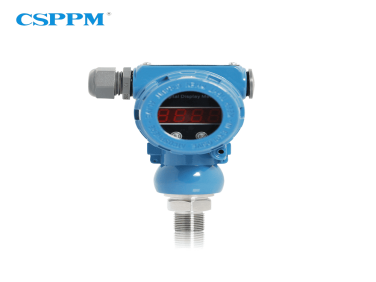

PPM-T230E Explosion-proof Intrinsically Safe Pressure Transmitter

  • NG # 04291-HW-CSPPM-010

The PPM-T230E Explosion-Proof Pressure Transmitter is a high-performance industrial sensor designed for hazardous and explosive environments. It provides accurate and stable pressure measurement for gas and liquid media using advanced MEMS technology and supports multiple output signals for flexible industrial integration.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T230E Explosion-Proof Pressure Transmitter is engineered for demanding industrial applications where safety, precision, and durability are critical. It is specifically developed for use in high-risk environments such as oil and gas systems, petrochemical plants, natural gas processing, and other explosion-prone areas.

Built with advanced MEMS sensing technology and a precision signal processing circuit, the transmitter ensures high accuracy and long-term stability even under extreme working conditions. It can directly measure very low to high pressures, including cryogenic environments down to -196°C without requiring additional protective tubing, ensuring true and reliable readings.

The device supports multiple standard output signals such as 4–20mA and voltage outputs, making it compatible with a wide range of industrial control systems. With strong resistance to interference, overload, vibration, and moisture, it is a reliable solution for continuous pressure monitoring in harsh environments.

Specification

  • Model: PPM-T230E
  • Measuring Medium: Gas, liquid
  • Pressure Type: Gauge / Absolute / Sealed (customizable)
  • Pressure Range: 0 to 0.1 bar up to 2000 bar (varies by configuration)
  • Output Signals: 4–20mA, 0–5VDC, 1–5VDC, 0–10VDC (optional)
  • Power Supply: 9–36 VDC
  • Accuracy: ±0.1% FS / ±0.2% FS / ±0.5% FS (depending on model)
  • Non-linearity: ≤0.2% FS
  • Repeatability: ≤0.2% FS
  • Long-term Stability: ≤0.25% FS per year
  • Operating Temperature: -40°C to +85°C (higher variants available)
  • Medium Temperature Range: -196°C to +85°C
  • Overpressure Protection: Up to 150% FS
  • Burst Pressure: Up to 300% FS
  • Ingress Protection: IP67
  • Explosion Protection Class: Ex ib II CT4/CT5
  • Electrical Connection: M20×1.5 / G1/2 / customizable
  • Process Connection: 1/4 NPT, 1/2 NPT, M20×1.5 and others
  • Materials: Stainless steel (316 or equivalent)
