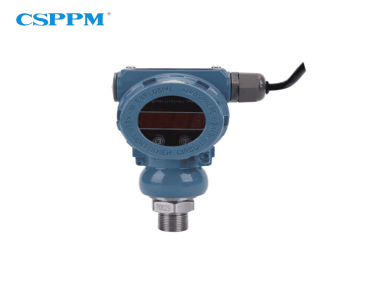

PPM-T232H Metal Strain Pressure Transmitter

  • NG # 04304-HW-CSPPM-023

The PPM-T232H Metal Strain Pressure Transmitter is a high-performance industrial pressure sensor designed for measuring pressure in liquids, gases, and steam. It uses advanced strain gauge technology with a fully welded stainless steel structure, ensuring strong durability, high overload resistance, and long-term stable performance in harsh industrial environments.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T232H pressure transmitter is built with a high-strength stainless steel elastic sensing element and adopts mature strain gauge measurement technology. The sensor is fully sealed and welded within a stainless steel housing, making it highly resistant to vibration, shock, and corrosive working conditions.

It is engineered for demanding industrial applications where accuracy, reliability, and long service life are critical. The device offers excellent stability over time, low power consumption, and strong overload protection capability, making it suitable for continuous pressure monitoring in heavy-duty systems.

With customizable pressure ranges and process connections, the PPM-T232H is widely used across industries such as petroleum, chemical processing, metallurgy, power generation, water treatment, and hydraulic systems.

Specification

  • Measured Medium: Liquid, gas, and steam
  • Pressure Range: 0 to 100 bar … up to 2000 bar (customizable)
  • Pressure Type: Gauge pressure (custom options available)
  • Output Signal: 4–20 mA standard
  • Power Supply: 9–36 VDC
  • Accuracy: ±0.2% FS / ±0.5% FS (optional)
  • Non-linearity: ≤0.2% FS
  • Repeatability: ≤0.25% FS
  • Long-term Stability: ≤0.25% FS per year
  • Operating Temperature (Medium): -40°C to +85°C
  • Operating Temperature (Environment): -40°C to +75°C
  • Overload Capacity: ≥5× full scale pressure
  • Pressure Connection: M20×1.5, G1/2, 1/2 NPT, G1/4 or customized
  • Electrical Interface: M20×1.5
  • Housing Material: Stainless steel
