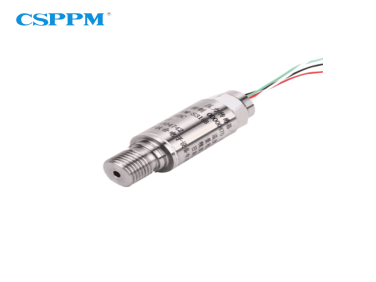

PPM-S316B -196 ℃ Ultra-Low Temperature Pressure Sensor

  • NG # 04299-HW-CSPPM-018

The PPM-S316B Ultra-Low Temperature Pressure Sensor is a high-precision industrial pressure measurement device designed to operate reliably in extreme cryogenic environments down to -196°C. It provides stable and accurate pressure readings for gases, liquids, and steam, making it suitable for scientific, industrial, and aerospace applications.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-S316B is engineered using advanced special processing and stainless-steel construction to ensure stable performance under ultra-low temperature conditions. It delivers mV-level output signals and maintains high accuracy, long-term stability, and resistance to harsh environments.

This sensor is widely used in cryogenic systems such as liquid oxygen, liquid nitrogen, liquid hydrogen, and liquid helium applications. It is also suitable for pressure monitoring in low-temperature storage tanks, cooling systems, and aerospace or aviation-related equipment.

The device supports multiple output options, including direct mV output and optional external transmitter outputs such as 4–20mA and 0–10V signals, allowing flexible integration into different control and monitoring systems.

With its compact design, customizable mounting options, and strong corrosion resistance, the PPM-S316B is built for demanding industrial environments where both precision and durability are critical.

Specification

  • Model: PPM-S316B
  • Measured Medium: Gas, liquid, and steam
  • Pressure Types: Absolute pressure, gauge pressure (sealed reference / ventilated gauge)
  • Pressure Range: 0 to 6 bar up to 600/1000 bar (various ranges available)
  • Operating Temperature (Medium): -196°C to +155°C
  • Operating Temperature (Environment): -196°C to +155°C
  • Accuracy: ±0.1% FS / ±0.25% FS / ±0.5% FS (optional)
  • Output Signal: 0–20 mV, 0–50 mV
  • External Output Options: 4–20 mA, 0–5 VDC, 0–10 VDC, 0.5–4.5 VDC
  • Power Supply: 10 VDC or 9–36 VDC (for transmitter version)
  • Non-linearity: 0.1% FS / 0.2% FS
  • Repeatability: 0.1% FS
  • Long-term Stability: 0.25% FS/year
  • Temperature Coefficient: 0.025% FS/°C
  • Electrical Interface: Direct cable outlet / M10×1
  • Mounting Thread Options: M10×1 (custom options available)
