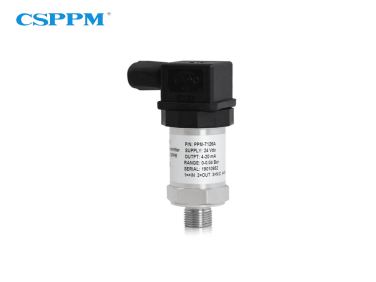

PPM-T126A Low Cost Industrial Pressure Transmitter

  • NG # 04282-HW-CSPPM-001

The PPM-T126A Universal Application Pressure Sensor is a high-performance, cost-effective industrial pressure transmitter designed for accurate and stable measurement of gas, liquid, and steam pressure across a wide range of applications. Built with advanced MEMS technology and a fully sealed stainless steel structure, it ensures durability, reliability, and long service life in demanding environments.

Manufactured By :
csppm sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PPM-T126A pressure sensor is engineered to deliver precise and consistent pressure measurement while maintaining affordability for industrial users. It incorporates imported pressure sensing elements combined with advanced MEMS packaging and compensation technology, ensuring high accuracy and long-term stability. The sensor features a compact, all-stainless steel construction that provides strong resistance to corrosion, overload, and harsh environmental conditions.

Designed for versatility, the PPM-T126A supports measurement of gauge, absolute, and negative pressure, making it suitable for a wide range of industrial processes. It can measure various media such as gas, liquid, and steam, provided they are compatible with stainless steel materials. With multiple output signal options and flexible process connections, the sensor can be easily integrated into different systems and applications.

Its reliable performance, compact size, and customizable configurations make it an ideal solution for industries such as oil and gas, water treatment, power plants, manufacturing, and process automation where accurate pressure monitoring and control are essential.

Specification

  • Measurement Range: 0–1 kPa up to 60 MPa
  • Pressure Type: Gauge, Absolute, Negative pressure
  • Accuracy: ±0.5% FS (optional ±0.2% FS)
  • Repeatability: ≤0.1% FS
  • Long-term Stability: ≤ ±0.2% FS/year
  • Output Signal:
    • 4–20 mA (2-wire system)
    • 0–5 VDC, 1–5 VDC, 0–10 VDC
    • 0.5–4.5 VDC (3-wire system)
  • Power Supply: 12–36 VDC
  • Measured Media: Gas, liquid, steam (compatible with 316L stainless steel)
  • Operating Temperature: -30°C to +85°C
  • Environment Temperature: -30°C to +85°C
  • Construction: Fully sealed stainless steel body
  • Process Connection Options:
    • M20×1.5, M14×1.5, M12×1
    • G1/4, G1/2, 1/4 NPT
    • Customizable options available
  • Features: Compact size, high overload resistance, corrosion resistance, long service life
